POSITIVE_LOGIC_LAMP_DRIVER

Published:2009/7/23 21:54:00 Author:Jessie | From:SeekIC

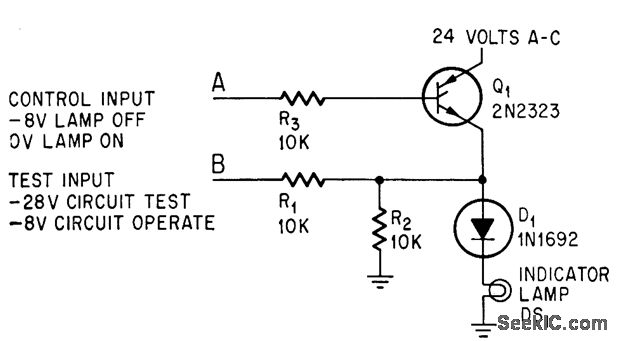

Turns on lamp for zero or positive control pulse at A. Negative pulse at B tests condition of circuit and lamp.-A. E. Popodi, Reliable Repertoire Of Display Circuits, Electronics, 38:2, p 60-66.
