PNPN_SHIFT_REGISTER

Published:2009/7/23 21:24:00 Author:Jessie | From:SeekIC

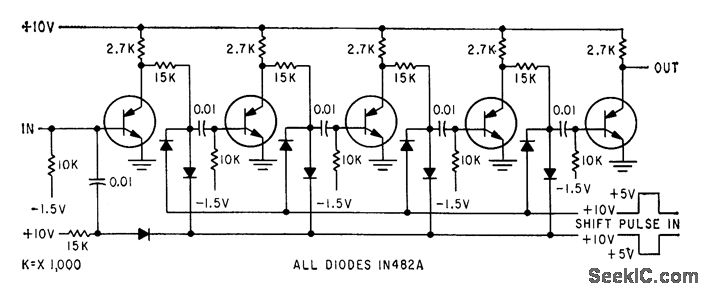

Consists of five one bit memory elements connected in cascade.-J. B. Hangstefer and L. H. Dixon, Jr., Triggered Bistable Semiconductor Circuits, Electronics, 32:35, p 58-60.
