PIEZO_MICROPOSITIONER_DRIVER

Published:2009/6/24 23:43:00 Author:May | From:SeekIC

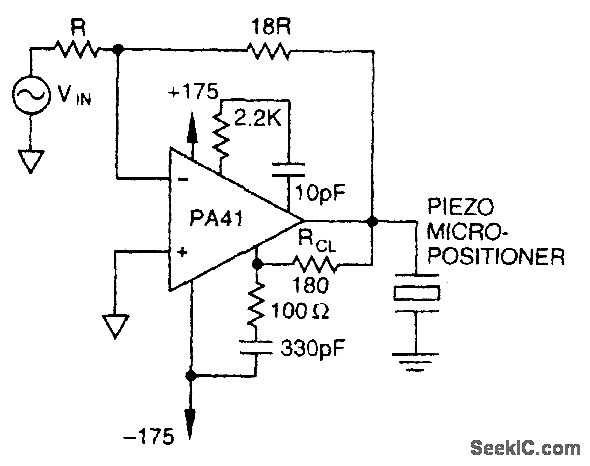

The PA41 from Apex Microtechnology is used here to drive a piezoelectric micropositioner. The drive voltage is less than 20 V p-p at input.
