PIEZOELECTRIC_BUFFER

Published:2009/6/23 3:00:00 Author:May | From:SeekIC

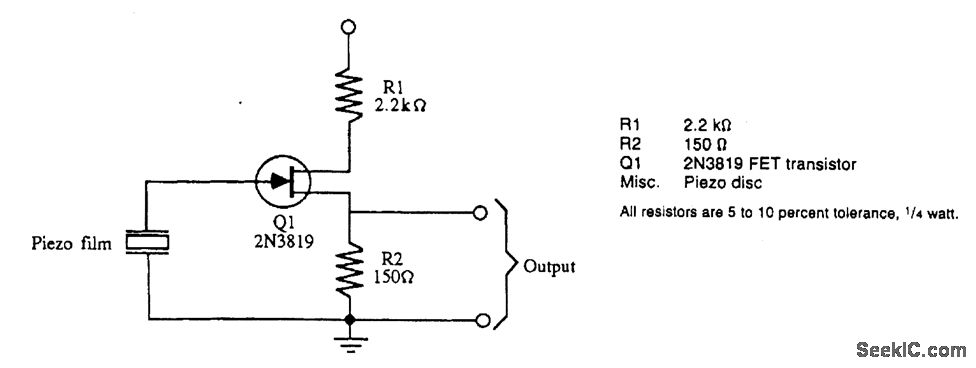

This circuit will serve as a buffer for experiments with Kynar film, a piezoelecffic material, or with piezo devices.
