PHONO_PREAMP_1

Published:2009/7/14 4:11:00 Author:May | From:SeekIC

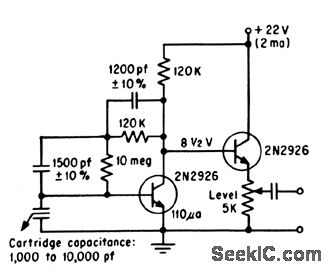

Two planar passivated silicon transistors give RIAA equalization for ceramic cartridge.-General Electric Co.(ad),Electronics, 37:17, p 38.
