Output power amplifier circuit of operational amplifier

Published:2012/9/20 1:08:00 Author:Ecco | Keyword: Output power amplifier, operational amplifier | From:SeekIC

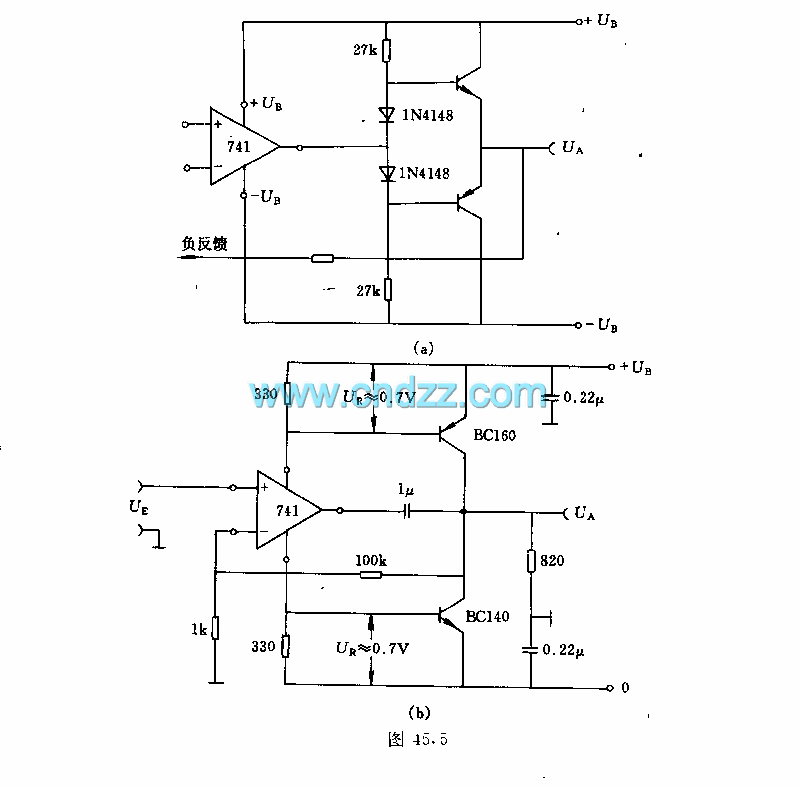

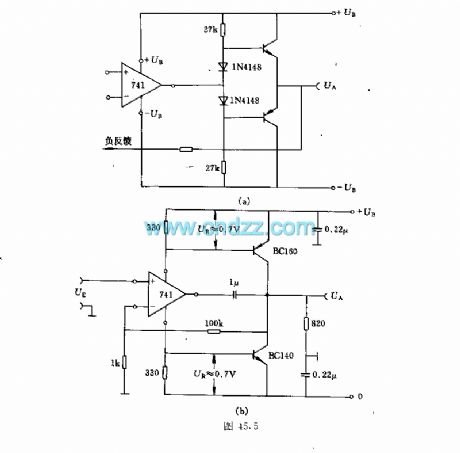

The circuit shown in Fig uses two transistors as an emitter follower, and diode for reducing the control dead zone (transistor base - emitter voltage UBEs = 0.7V ), and about 1mA current on the base resistor to form a bias and decide electrode quiescent current. The circuit shown in Figure b is connected to two resistors in the op-amp power connection. The quiescent current from two resistors flowing through the operational amplifier to produce about 0.7V voltage drop.
