The joint circuit between MMA1260D and ATmega8L

Published:2011/7/7 6:39:00 Author:Ariel Wang | Keyword: joint, MMA1260D, ATmega8L | From:SeekIC

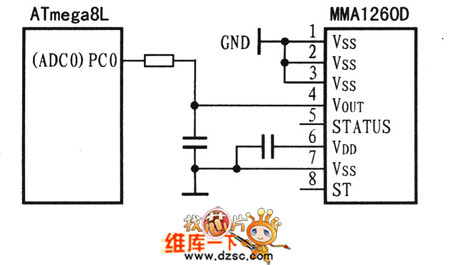

Acceleration sensor for MMA1260D collects the data of mobile acceleration. And it goes through the port of PC0 of ATmega8L(ADC0) to ATmega8L. It forms a direct ratio of the output voltage and the acceleration of MMA1260D's acceleration sensor. For measuring the output voltage of acceleration sensor,usually we use microcontroller with A/D. For specific connection,see chart. There is a filter between VOUT and the RC of A/DIN's pin.It is used for reducing the noise of the clock. There is no strong electric current between acceleration sensor and microcontroller.The 0.1μF capacitance between power-supply and ground is the decoupling capacitance.
