SDA6000 System Control Microcomputer Integrated Circuit

Published:2011/8/3 7:30:00 Author:Michel | Keyword: Microcomputer, Integrated Circuit | From:SeekIC

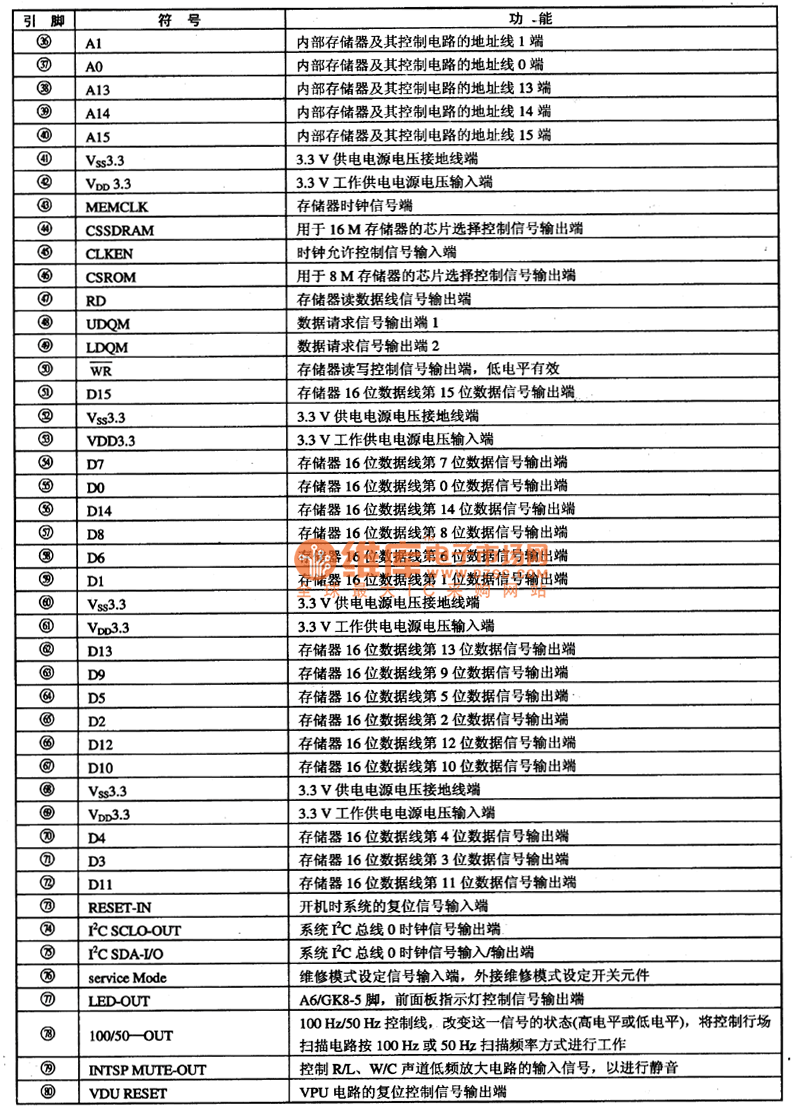

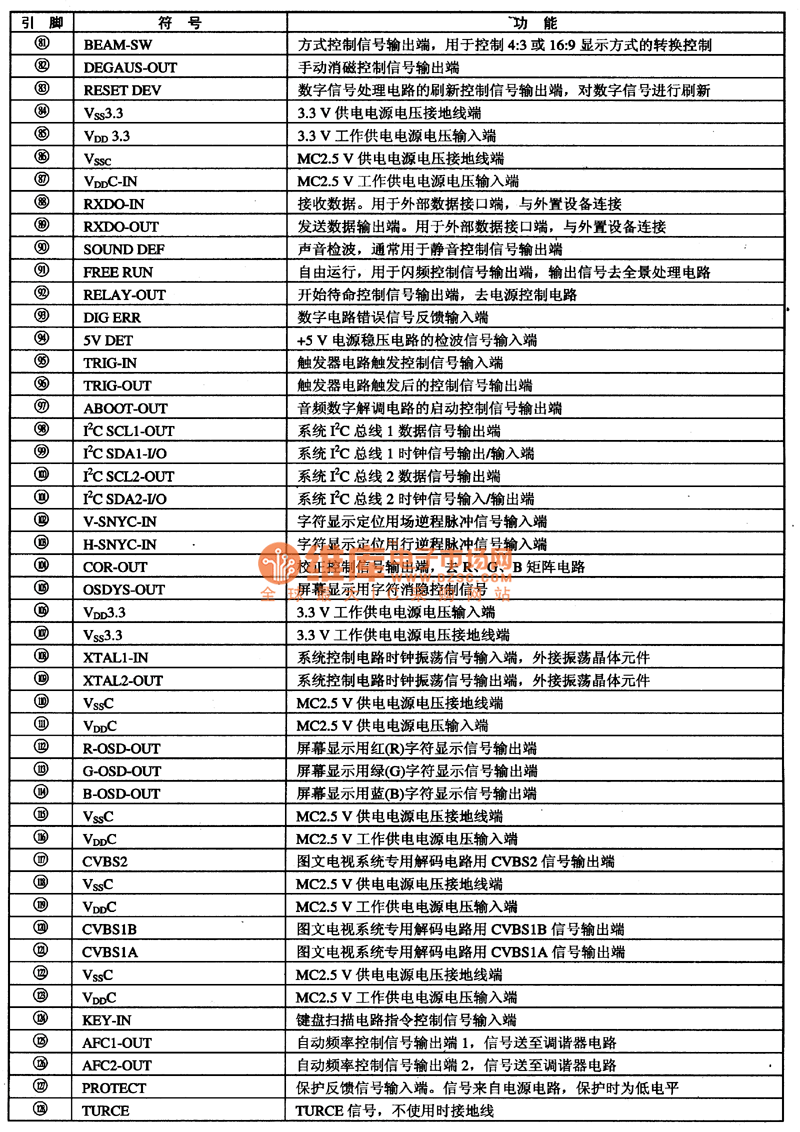

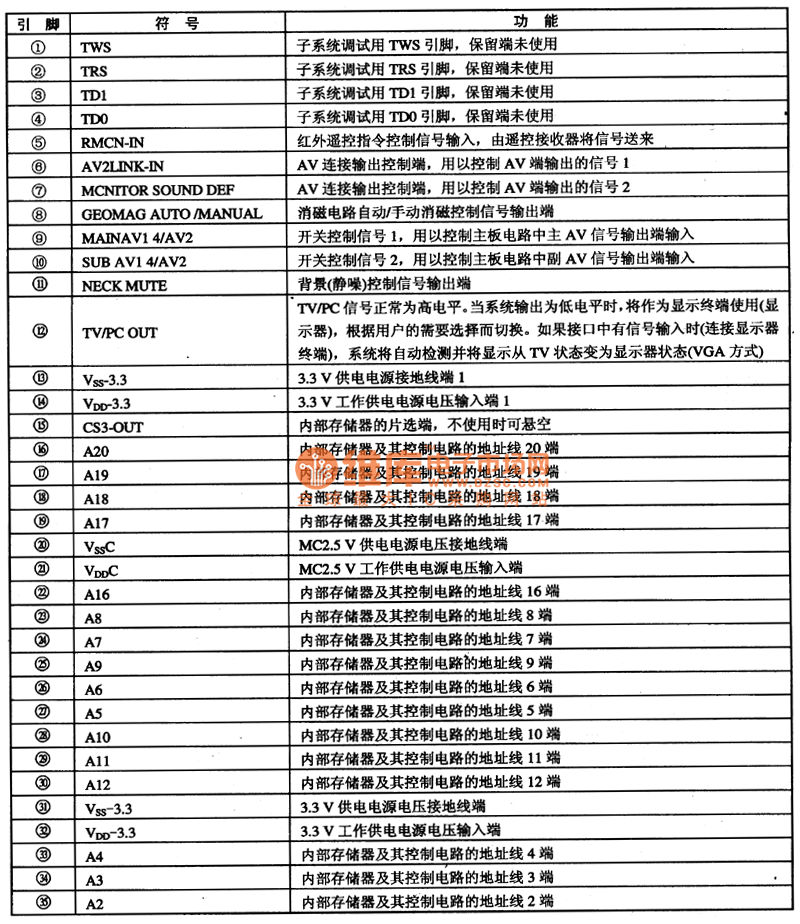

SDA6000 is a new type system control microcomputer integrated circuit that is widely used in EURO7 and GIGAP5O0 series big screen color TV of Panasonic. First,Functions and Features SDA6000 integrated circuit has two pieces of the usual memory chips, one is 8M rapid FLASH memory (a FLASH) solid ROMR read memory and it is used in system of data read.The other one is the 16M SDRAM conventional memory (RAM). This configuration storage capacity is much larger than the average color TV set, and can fully satisfy completing new function needs of the multi-function large screen color TV. Second,Pins FunctionsSDA6000 integrated circuit uses 128 feet square structure and its pins functions are shown as table 1. Table 1:SDA6000 IC Pins Functions and Data
