PCMl710U 2O Double Track DAC Integrated Circuit

Published:2011/8/3 7:09:00 Author:Michel | Keyword: Double Track, DAC Integrated Circuit | From:SeekIC

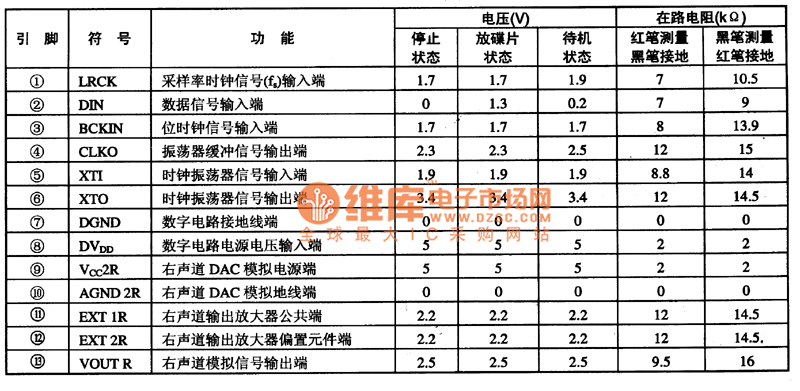

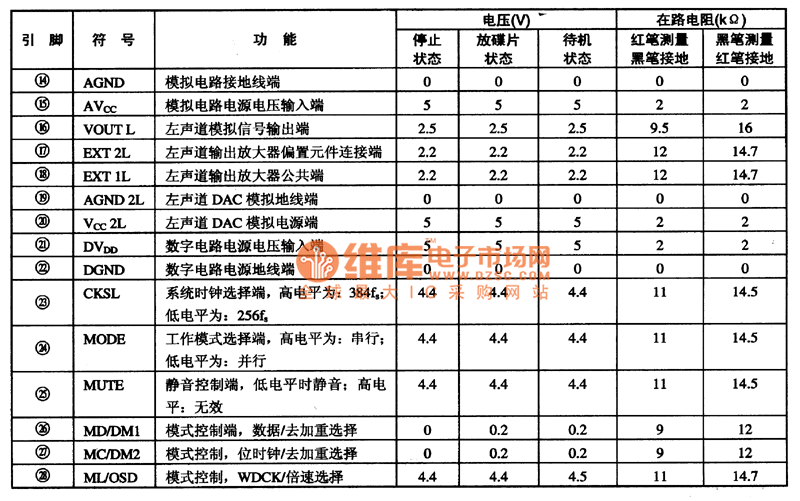

PCMI7I0U is the D/A converter integrated circuits produced by the BB company and it is widely used in VCD, SVCD, DVD, VCD audio D/A transformation. First,Functions Features PCMl710U integrated circuit contains eight times sampling digital filter and 4 order noise plastic circuit. It uses many △-∑ structure and level 5 conversion level.They are not sensitive to time setting jitter and power supply fluctuation. There is simulation low pass filter, which can simplify an external circuit of the design.And the failure rate drops greatly. Second,Pins Functions and Data PCM1710U integrated circuit uses feet 28 DIP package and its pins functions and data is shown as table 1. Table 1 ：PCMl710U IC Pins Functions and Data
