P87C766 Single-chip Microcomputer Integrated Circuit

Published:2011/7/28 22:12:00 Author:Michel | Keyword: Single-chip, Microcomputer, Integrated Circuit | From:SeekIC

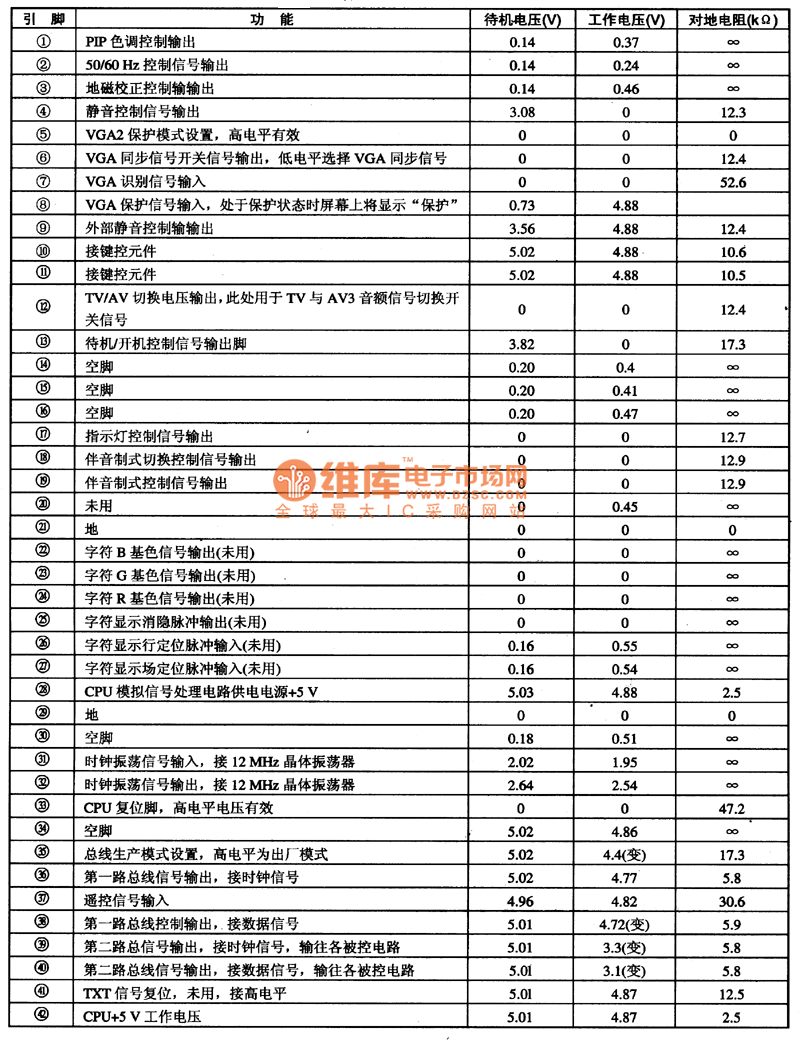

P87C766 is single-chip microcomputer integrated circuit produced by Phlips Company and it is special main control chip of ChangHong DT2000 frequency doubling color TV electric set. First,Function Features　P87C766 contains the CPU (central processing unit), the I2C bus circuit, OSD showing circuit, all kinds of identification signal circuit, all sorts of function control circuit, and some other auxiliary functions circuit. Second,Pins Functions and Data P87C766 IC adopts feet 42 DI{ package and P87C766 on DT2000 color TV and its pins functions and data are shown as table 1.The voltage of the table, change means that it is in unstable condition when the voltage is measured.
