One Kind Bridge Integrated Power Amplifier Circuit

Published:2011/5/5 20:27:00 Author:Robert | Keyword: Bridge, Integrated, Power Amplifier | From:SeekIC

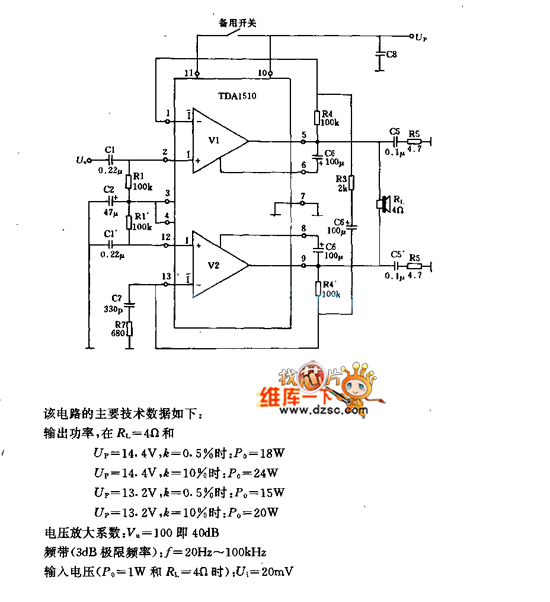

One Kind Bridge Integrated Power Amplifier Circuit is shown below. The circuit's main technical data is listed here. Output power, at RL=4Ω and: when Up=14.4V andk=0.5%, Po=18W when Up=14.4V and k=10%, Po=24W when Up=13.2V and k=0.5%, Po=15W when Up=13.2V and k=10%, Po=20W. Voltage amplification factor: Va=100 which means 4dB Bandwidth (3dB limit frequency): f=20Hz to 100KHz Input voltage (Po=1W and RL=4Ω):Ui=20mV
