NICAM Solution Decoding Intergrated Circuit

Published:2011/7/15 5:34:00 Author:Michel | Keyword: Decoding Intergrated Circuit | From:SeekIC

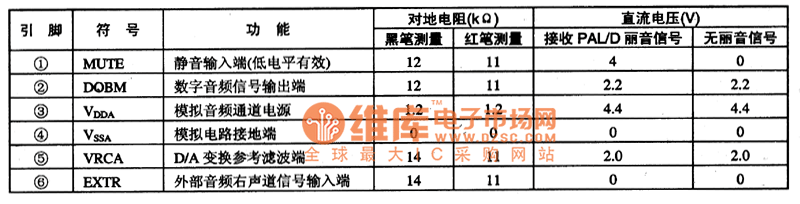

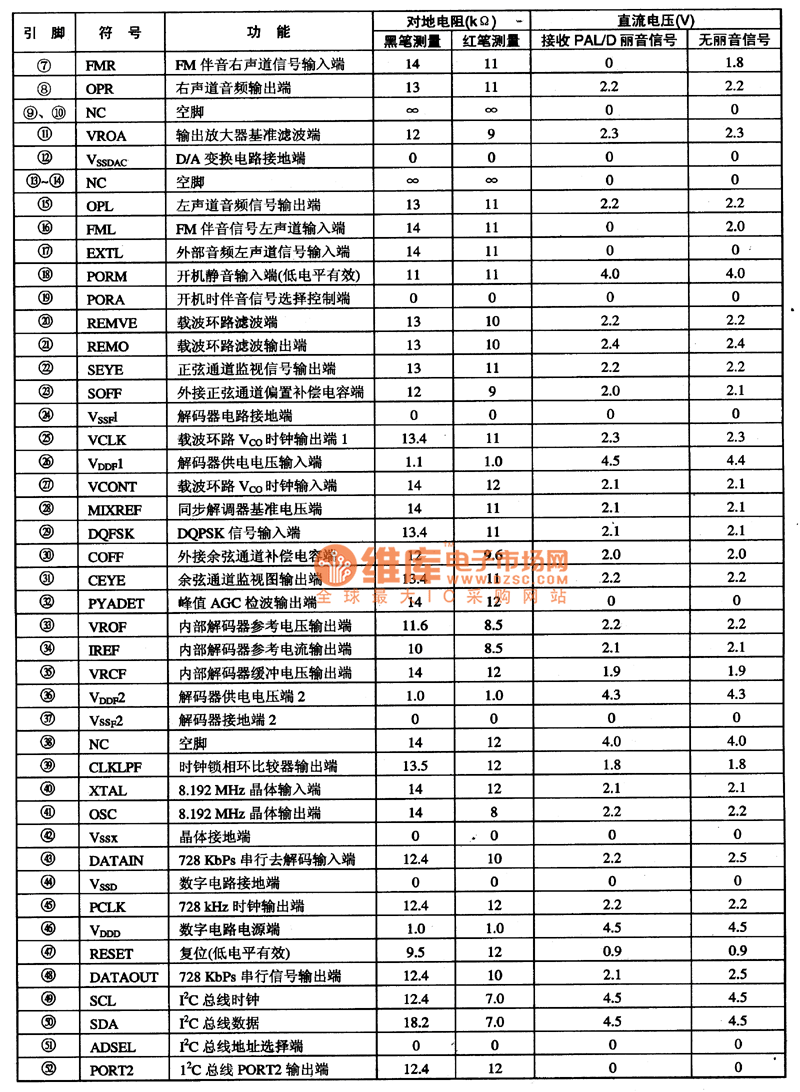

SAA7283ZP is nicam solution decoding intergrated circuit and it is used as nicam solution decoding in kinds of domestic and imported big screen color TVs. SAA7283ZP contains all functions that nicam solution decoder needs and it includes 8.192 MHz clock circuit, the I2C bus interface circuit, mute control circuit, carrier loop and some other auxiliary functions circuit. The IC uses 52 feet dual in-line package and its pins functions and the data measured from KONKA T3888N large screen color TV are shown as the table 1.The voltage of (49) and (50) feet change a little when they are measured. Table 1:Pins Functions of5M72832P and Measuring Data of KONKA T3888N Color TV
