Integrated Amplifier Circuit

Published:2011/5/4 9:36:00 Author:Robert | Keyword: Integrated Amplifier | From:SeekIC

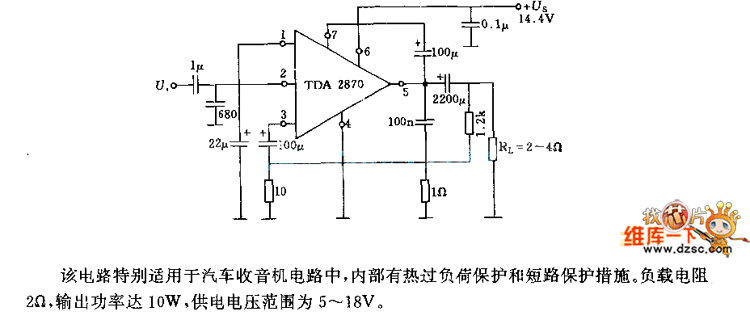

The integrated amplifier circuit is shown below. This circuit is specially suit for the car radio circuits. With internal thermal overload protection, its loading resistance is 2Ω and output power is 10W, and its supply voltage range is from 5V to 18V.
