GATED_ASTABLE

Published:2009/7/2 0:24:00 Author:May | From:SeekIC

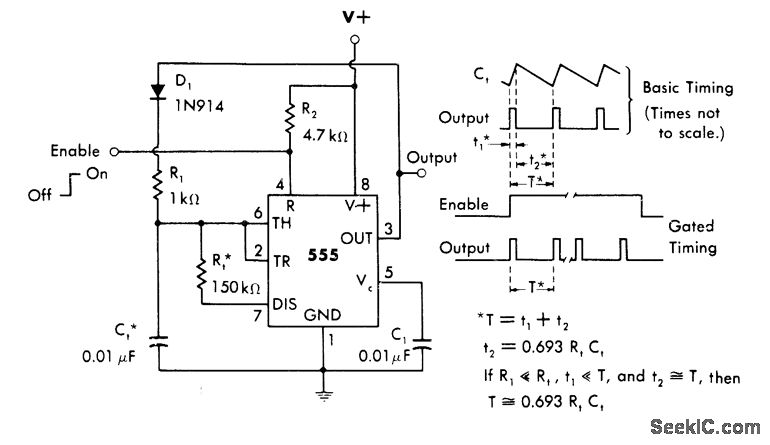

With values shown, circuit produces positive output pulses at about 1 kHz when gated on by positive pulse at pin 4. Supply voltage for 555 timer can be 15V.-W. G. Jung, IC Timer Cookbook, Howard W. Sams, Indianapolis, IN, 1977, p 135-136.
