50W Hi-Fi Audio Integrated Power Amplifier Circuit Composed Of TDA1514A

Published:2011/7/17 22:09:00 Author:Robert | Keyword: 50W, Hi-Fi, Audio, Integrated, Power Amplifier | From:SeekIC

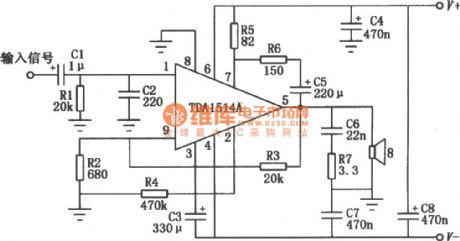

The picture shows the audio integrated power amplifier. It's the typical application circuit composed of TDA1514A. TDA1514A is a 50W Hi-Fi audio amplification IC produced by the Philips company. Its internal protection circuitsare complete which means it has not only the general over-heating, output short circuit protection, but also the safe operating area protection. The circuit is also set up a silent switch to suppress the starting noise' appearance. In the circuit's design it is also considered the better ripple rejection and low offset with low thermal resistance.
