Operational amplifier general zero setting method circuit diagram

Published:2011/9/26 21:21:00 Author:Rebekka | Keyword: Operational amplifier , zero setting method | From:SeekIC

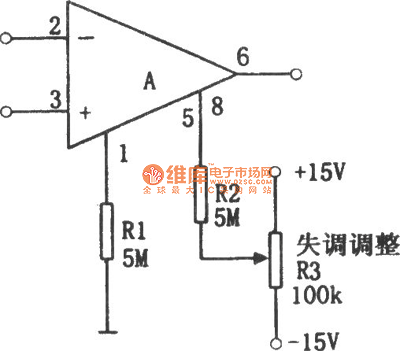

The figure shows a simple common zero seting circuit. Its integrated chip can be used for the OPA37, LH0044B and so on. As the adjustment of the network (R1, R2 and R3 form a potentiometer) uses the 15V positive and negative power supply, almost any amplifier is suitablefor zero seting. ①, ⑧ pins are zero ends. The resistors R1 and R2 are high-value resistors. It is usually taken to be 5MΩ for the LH0044B. It only has a few microamps of current and plus an adjustable voltage on R2, so that the two currents are imbalance and adjust the offset voltage.
