Op_amp_circuits_titles_and_descriptions

Published:2009/7/22 22:36:00 Author:Jessie | From:SeekIC

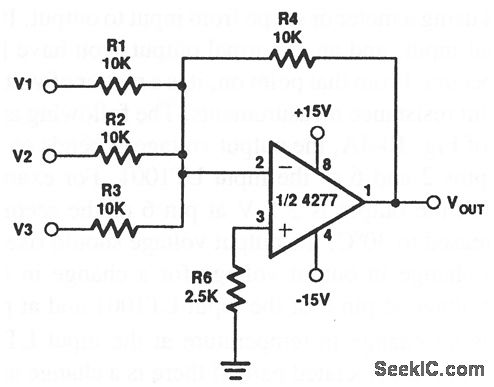

Because R1 through R4 are all the same value, VOUT=V1+V2+V3. Notice that R6 equals the parallel resistance of R1 through R4 and VOUT= -R4.
