O_3_MHz_PREAMP

Published:2009/7/6 1:31:00 Author:May | From:SeekIC

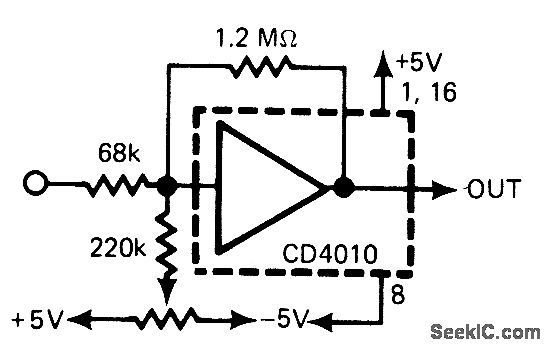

Provides wide frequency response required for amplifying 100 mV P-P input signals to 5-V level fordriving CMOS logic of frequency counter.-R. Tenny, Counter Pre-Amp Matches CMOS Logic Capability, EDN Allagazine, Sept. 20, 1976, p 114 and 116.
