OP_AMP_RESISTANCE_MULTIPLICATION_CIRCUIT

Published:2009/6/22 23:36:00 Author:Jessie | From:SeekIC

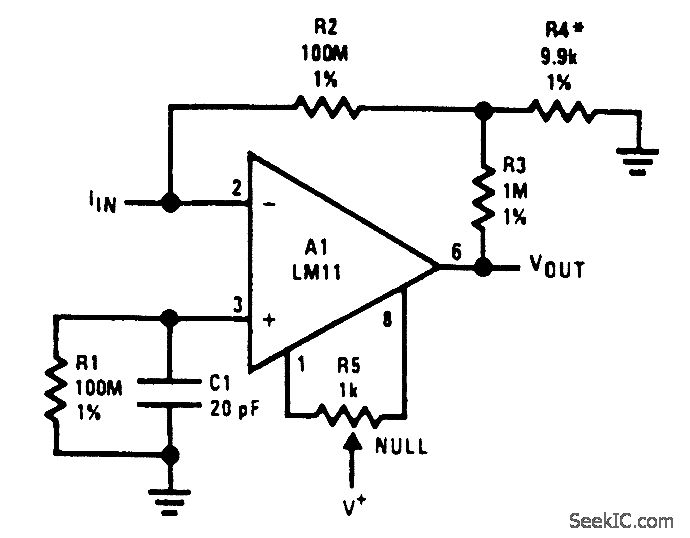

Equivalent feedback resistance is 10 GΩ, but only standard resistors are used. Even though the offset voltage is multiplied by 100, output offset is actually reduced because error is dependent on offset current, rather than bias current. Voltage on summing junction is less than 5 mV.
