OPERATIONAL_TRIGGER

Published:2009/7/21 7:54:00 Author:Jessie | From:SeekIC

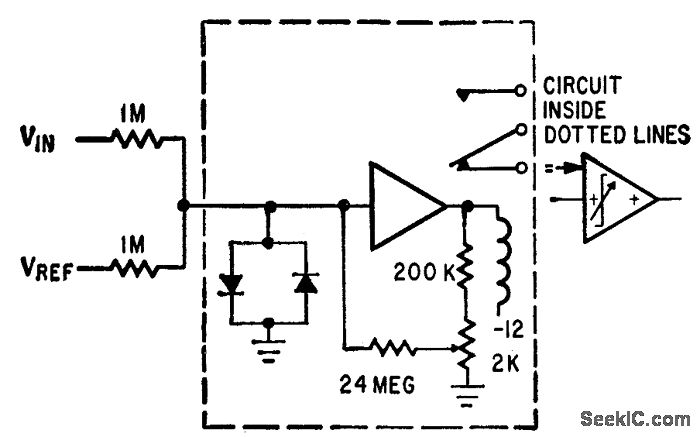

Combines some features of operational amplifier with those of Schmitt trigger. Input diodes prevent amplifier saturation.-P. Lefferts, Operational Trigger For Precise Control, Electronics, 37:28, p 50-55.
