OPERATIONAL_D_C_AMPLIFIER

Published:2009/7/14 21:04:00 Author:May | From:SeekIC

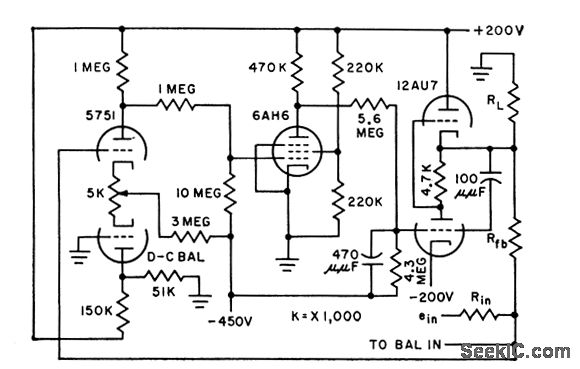

Ideal for control systems and analog computers because of broad passband and large control-system response characteristic. Open-loop gain above 15,000. Output swings 100V into 20,000-ohm load. Can be used from d-c to 20kc at unity dosed-loop gain.-L. S. Klivans, D-C Amplifiers for Control Systems, Electronics, 31:47, p 96-100.
