OCL and OTL amplifier circuit diagram connected by SF404

Published:2011/4/11 3:52:00 Author:Rebekka | Keyword: OCL and OTL | From:SeekIC

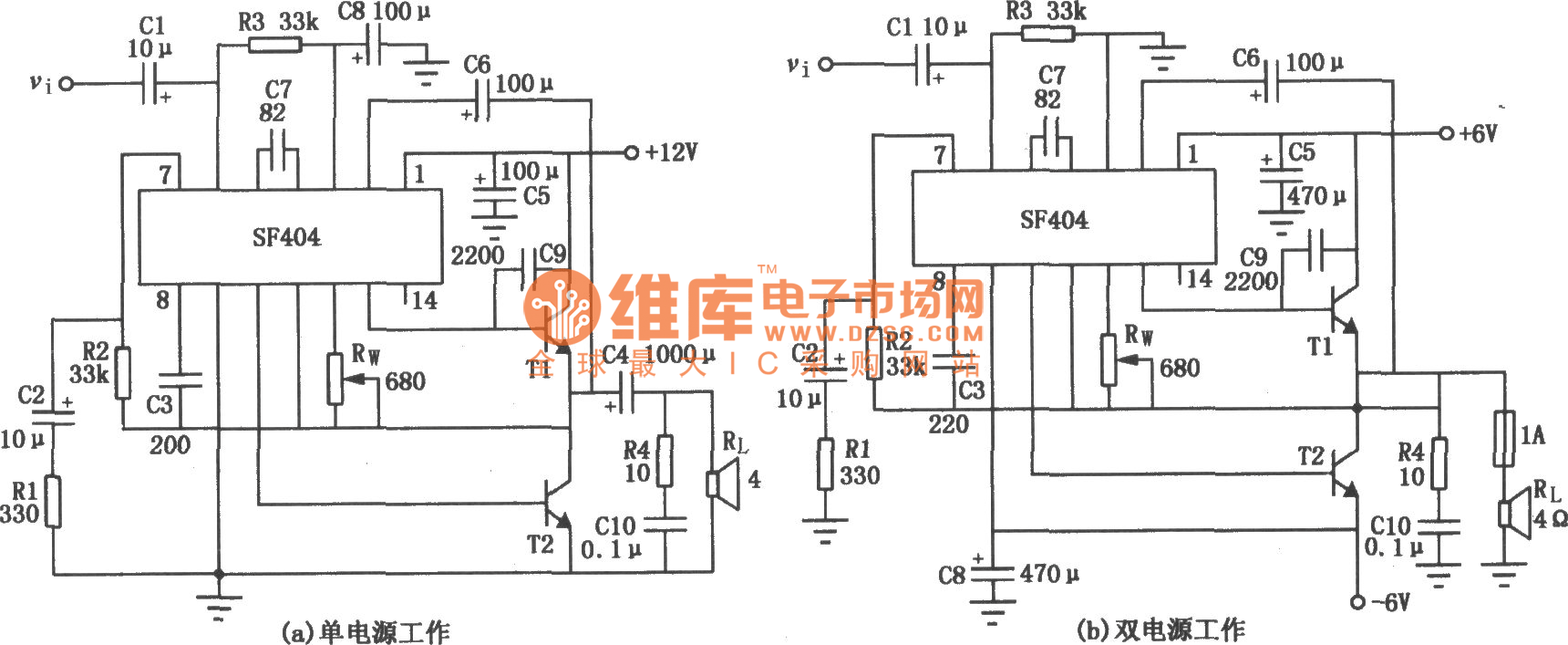

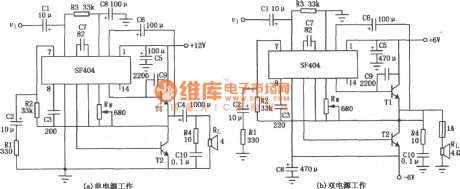

The features are: High fidelity, high driving ability, high thermal stability, wide supply voltage adaptation, reliable and also does a good job in the areas of DC, AC, transient characteristics. It is flexible in peripheral component interconnect. It can conect a variety of application circuit. OCL and OTL Connecting with SF404 PA circuit diagram is shown as below.
