Norton_pulse_generator

Published:2009/7/17 4:30:00 Author:Jessie | From:SeekIC

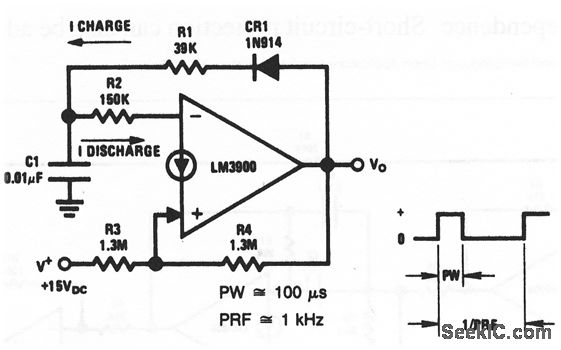

This circuit uses one section of an LM3900 to form a pulse generator (with a 1-kHz pulse repetition rate or frequency, and a 100-μs pulse width).
