Norton_noninverting_power_comparator

Published:2009/7/17 4:45:00 Author:Jessie | From:SeekIC

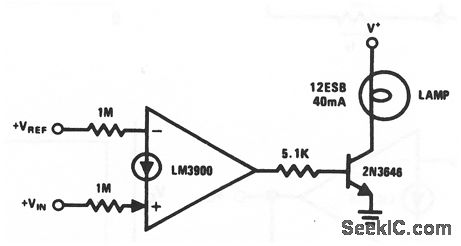

This circuit uses one section of an LM3900 and a 2N3646 to form a noninverting power comparator that is capable of driving a 12-V 40-Ma panel lamp. National Semiconductor, Linear Applications Handbook, 1991 p 243.
