Norton_lamp_relay_driver_20__to_30_mA_loads

Published:2009/7/25 1:34:00 Author:Jessie | From:SeekIC

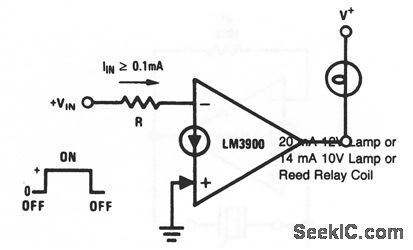

This circuit uses a Norton to drive low-power lamps and relays (such as reed relays). Note that the value of R must be selected such that VIN supplies at least 0.1 mA of input current.
