Norton_high_yoerforrnance_video_amplifier

Published:2009/7/25 1:54:00 Author:Jessie | From:SeekIC

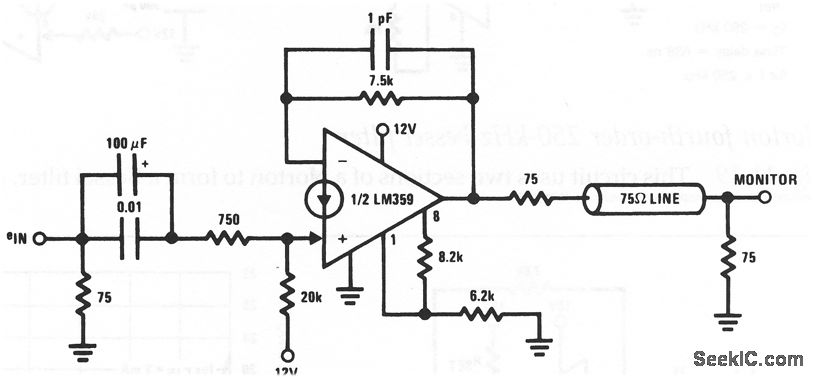

This circuit shows a Norton used as a noninverting video amplifier: Typical voltage gain is 20 dB, with a -3-dB bandwidth from 2.5 Hz to 25 MHz, and a 4-V pp output swing. Differential phase error is less than 1°, and differential gain error is less than 2% at 3.58 MHz. A typical signal source can be either detected video from a receiver or possibly from a camera signal.
