Norton_differentiator

Published:2009/7/17 4:58:00 Author:Jessie | From:SeekIC

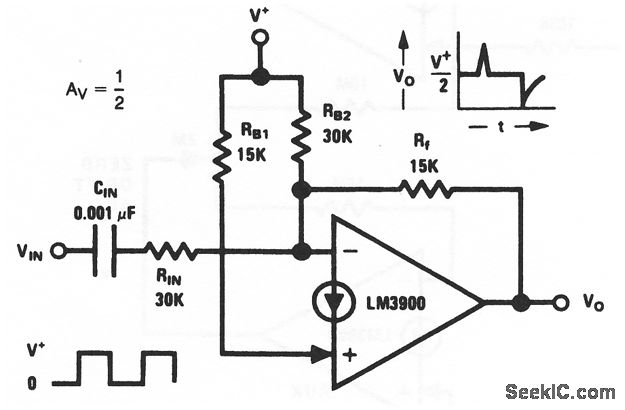

This circuit shows one section of an LM3900 that is used to form a differentiator. Notice that the differentiated output is one-half of the square-wave input. National Semiconductor, Linear Applications Handbook, 1991, p 248
