Norton_amplifier_with_high_input_impedance_and_high_gain

Published:2009/7/17 4:14:00 Author:Jessie | From:SeekIC

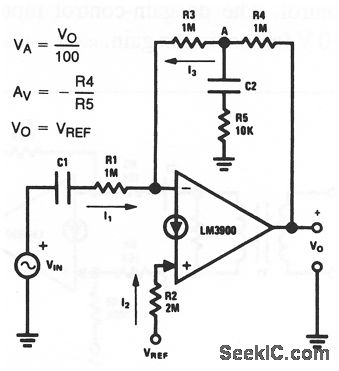

This circuit uses one section of an LM3900 to form an ac amplifier with both high input impedance (1 MΩ) and high gain (100). National Semiconductor, Linear Applications Handbook 1991 p 221.
