Nonirroerting_amplifier

Published:2009/7/24 20:54:00 Author:Jessie | From:SeekIC

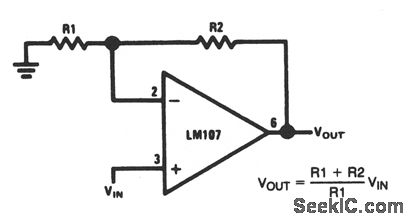

This circuit shows an LM107 in the classic noninverting amplifier configuration, where VOUT follows VIN. The amplitude of the output depends on the ratio of R1 and R2 (within the limits of the supply voltage). The parallel resistance of R1 and R2 should equal the source resistance.
