Nanosecond pulse detection circuit

Published:2011/4/26 18:42:00 Author:Christina | Keyword: Nanosecond pulse, detection | From:SeekIC

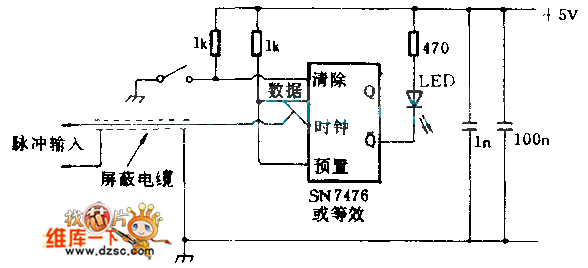

This circuit can detects the no-reproduce digital pulse of microsecond or nanosecond. The bistable IC sends the pulse information from the data input port to the Q output port, and this bistable IC uses the clock pulse along as the time base to stimulate the LED indicator.
