NONINVERTING_ac_AMPLIFIER

Published:2009/6/15 2:32:00 Author:May | From:SeekIC

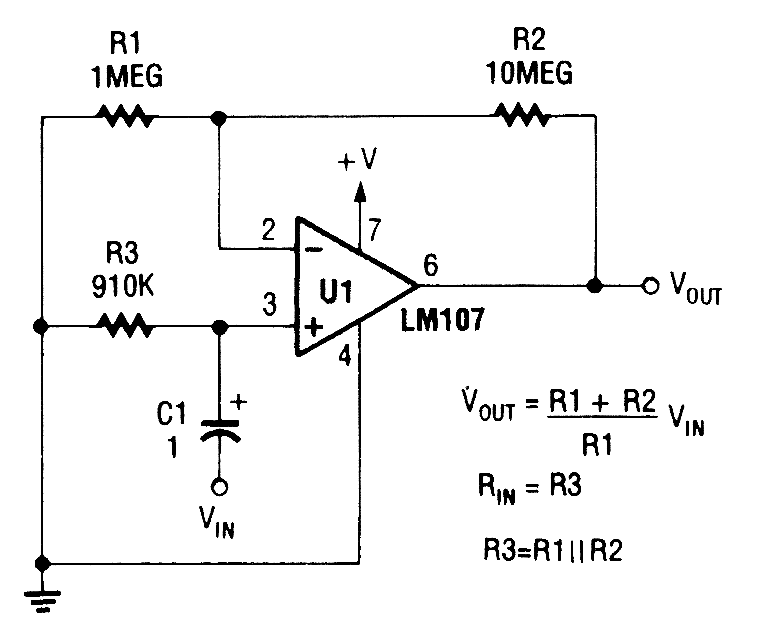

A general-purpose noninverting ac amplifier for audio of other low-frequency applications is shown. Design equations are in the figure. Almost any general-purpose op amp can be used for U1.
