NEUTRALIZED_MOS_FET

Published:2009/7/10 1:45:00 Author:May | From:SeekIC

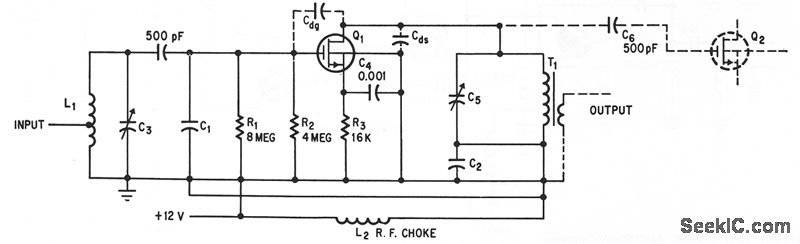

Delivers power gain of 20 db at 100 Mc, with common-source connection.-G.C.Luettgenau and S.H.Barnes,Designing With Low-Noise MOS FETs:A Little Different But No Harder,Electronics,37:31,p 53-58.
