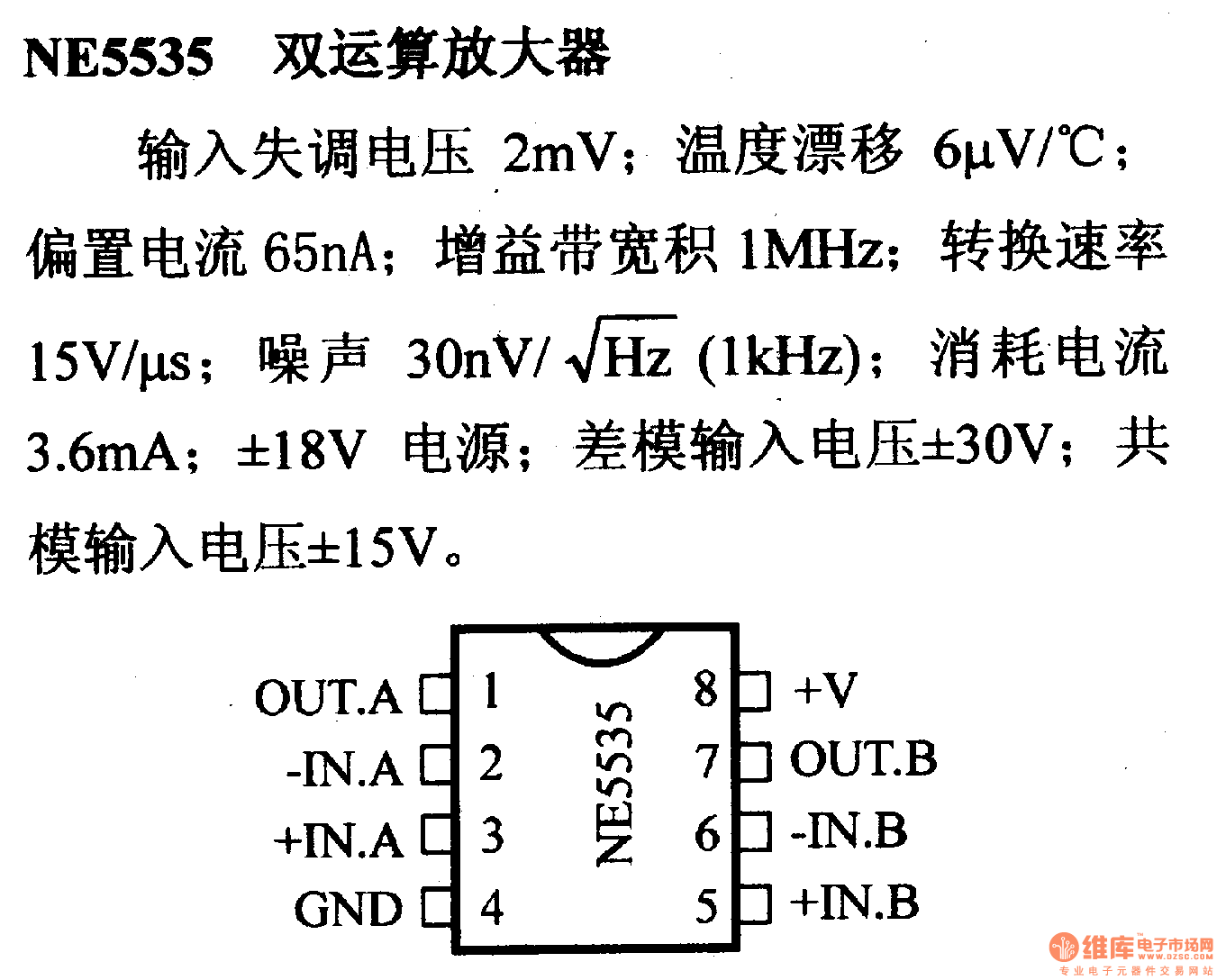

NE5535 dual op amp and its pin main characteristics

Published:2013/1/18 2:51:00 Author:Ecco | Keyword: dual op amp , pin main characteristics | From:SeekIC

Input offset voltage is 2mV; temperature drift is 6μV / ℃; bias current is 65nA; Gain Bandwidth Product is 1MHz; conversion rate is 15V/μs; noise is 30nV / √ ¯ Hz ( 1kHz); current consumption is 3.6mA; power supply is ± 18V; differential-mode input voltage is ± 30V; common-mode input voltage is ± 15V.
