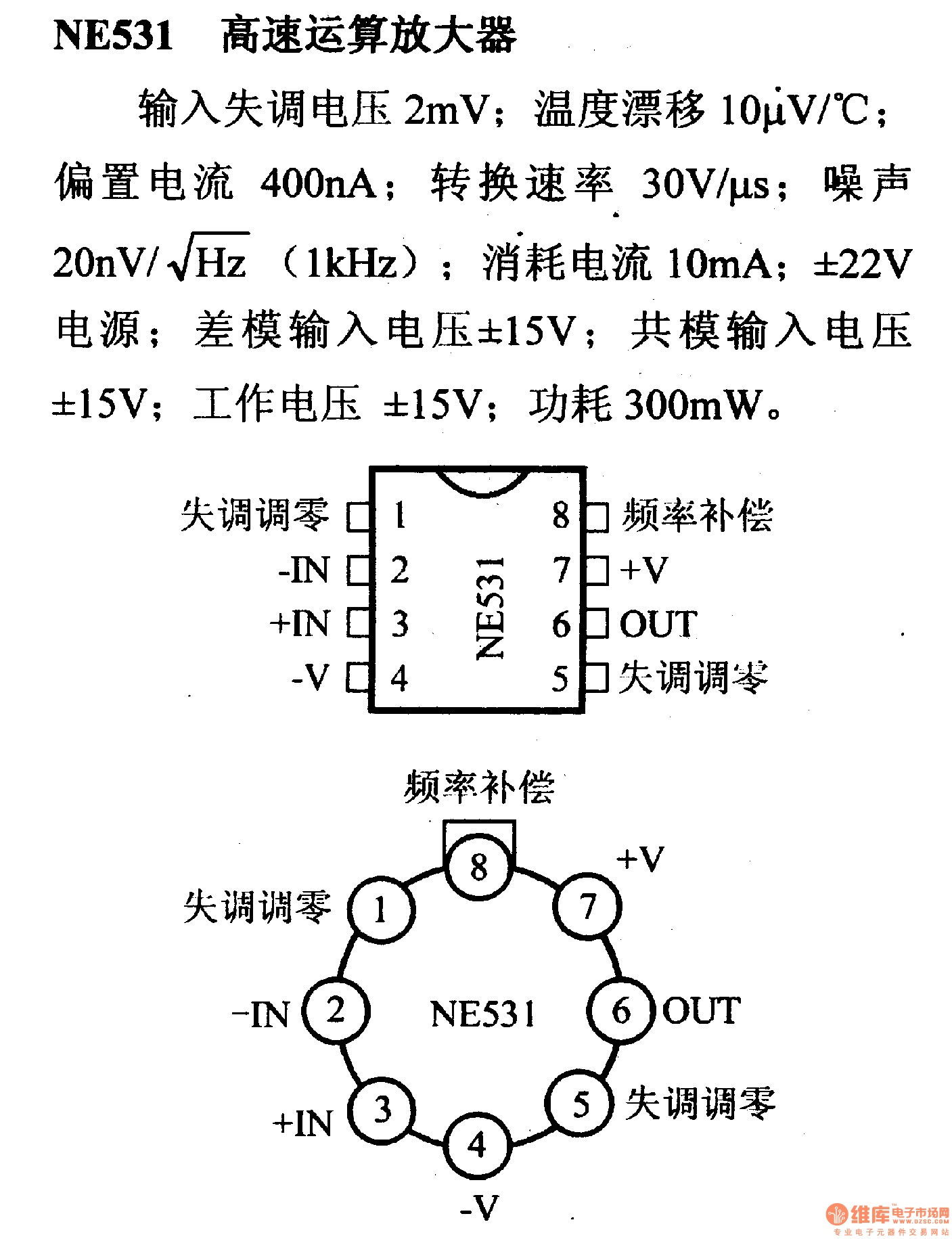

NE531 high - speed operational amplifier and its pin main characteristics

Published:2013/1/15 1:36:00 Author:Ecco | Keyword: high - speed , operational amplifier , pin main characteristics | From:SeekIC

2mV input offset voltage; 10 μV / ℃ temperature drift; 400nA bias current; 30V/μs conversion rate; 20nV / √ ¯ Hz (1Hz) noise; 10mA Current consumption; ± 22V power supply; ± 15V differential-mode input voltage; ± 15V common-mode input voltage; 300mW power consumption.
