NAB_PLAYBACK_PREAMP

Published:2009/7/14 5:18:00 Author:May | From:SeekIC

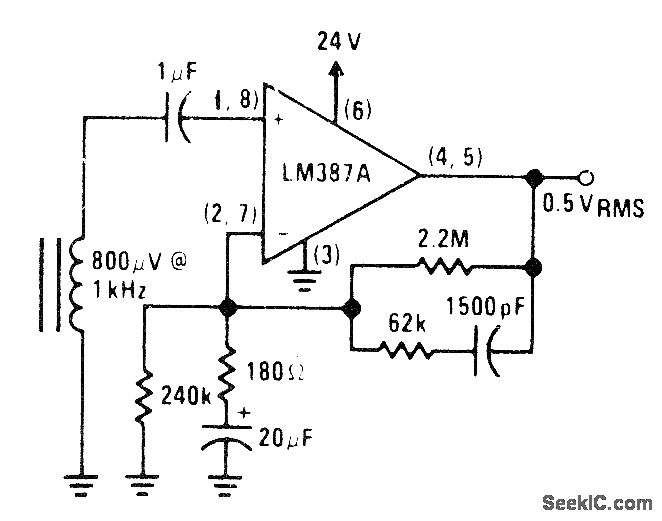

Provides standard NAB equalization for tape player requiring 0.5 VRMS from head having sensitivity of 800μV at 1 kHz, with operating speed of 3 3/4 in/s. Design procedure is given. Voltage gain at 1 kHz is 56 dB.- Audio Handbook, National Semiconductor, Santa Clara, CA, 1977, p 2-31-2-37.
