Multipurpose Exposure Timer Circuit

Published:2011/4/27 18:40:00 Author:Christina | Keyword: Multi-exposure, Exposure Timer | From:SeekIC

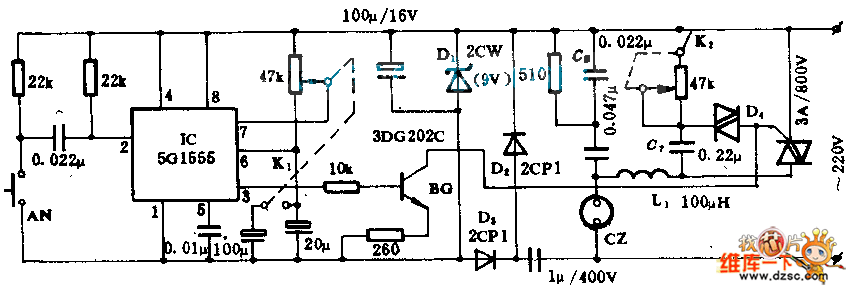

The device can satisfy the photographers to master the appropriate exposure to ensure the quality of photos. This device has many features such as accurate timing, wide-ranging application, exposure timing, dimming.etc. Bulb of enlarger or Electric irons, electric blankets, lamps, electric fans and motors can be connected to the output sockets CZ, the output power limited by the capacity of SCR, if it is a pure resistive load, this device can provide 600W of output power; if it is capacitive or inductive load, the output power is less than 300W.
