Monostable Trigger Circuit Composed of 555

Published:2011/5/9 5:11:00 Author:Sue | Keyword: Monostable, Trigger | From:SeekIC

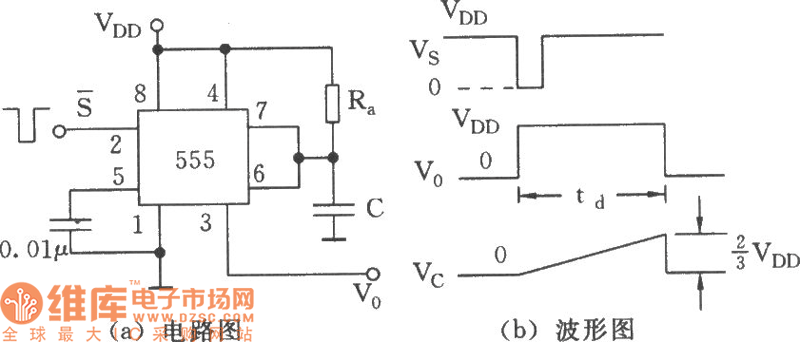

As seen in the figure is the monostable trigger circuit composed of 555. The function terminals in the figure are corresponding to this. We can see that the monostable circuit is made only by connecting a timing network composed of resistance Ra and capacity C. (a) Circuit (b) Waveform.
