MT8803--the infrared remote controller integrated circuit

Published:2011/6/10 21:38:00 Author:qqtang | Keyword: infrared remote controller, integrated circuit | From:SeekIC

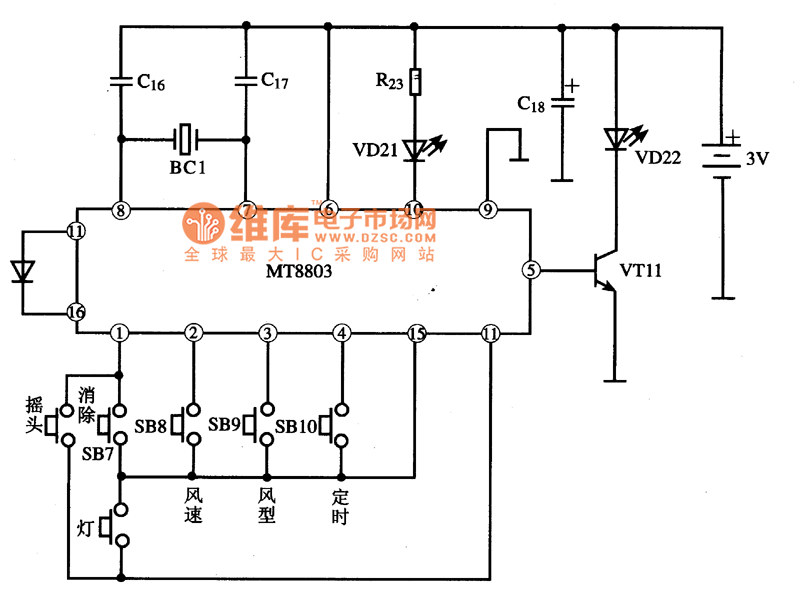

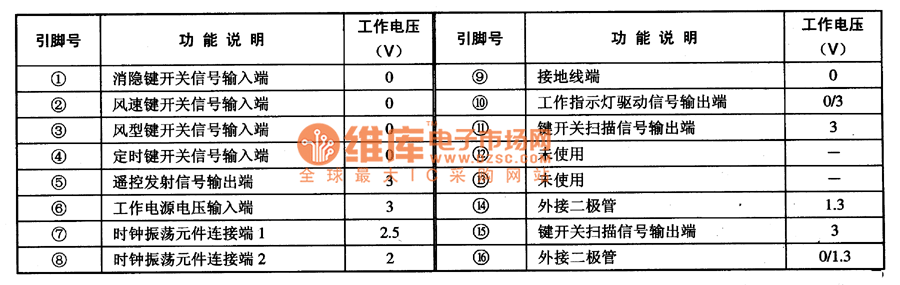

MT8803 is an infrared remote controller integrated circuit, which often forms the fan remote control system with the remote signal receiver circuit MR8181 and the fan single chip integrated circuit MH8822, such as the Great Wall fan and the like. MT8803 is in 16-pin dual line package, whose typical application circuit is shown in the figure, and its pin functions and data are listed in the figure. The typical application circuit of MT8803 The pin functions and data of MT8803
