MSP3410B--the multi-system sound process single chip integrated circuit

Published:2011/6/10 21:47:00 Author:qqtang | Keyword: multi-system sound process, single chip | From:SeekIC

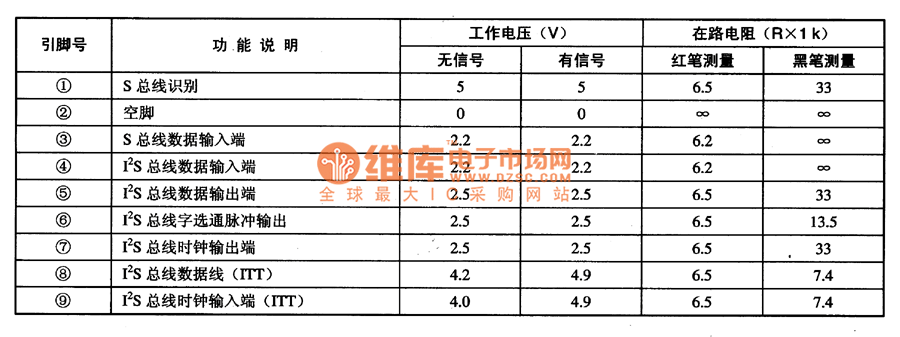

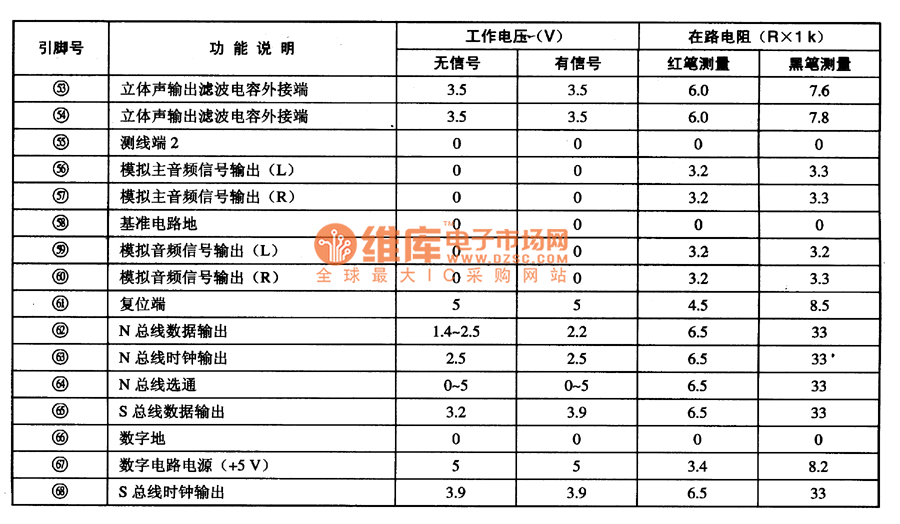

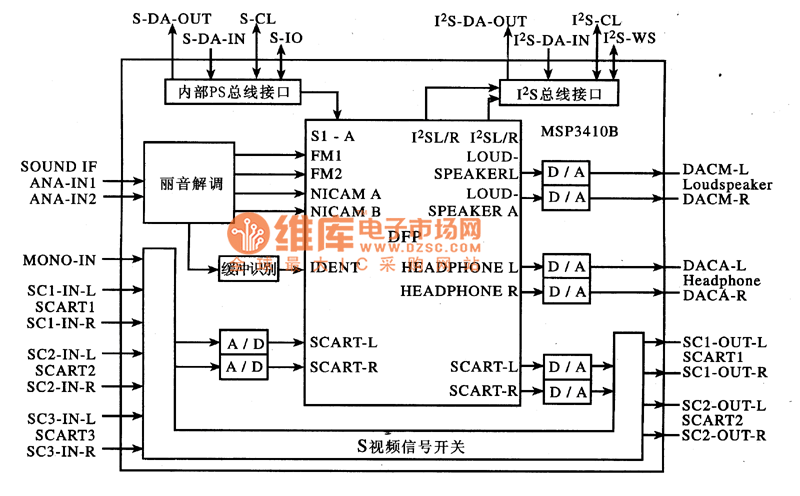

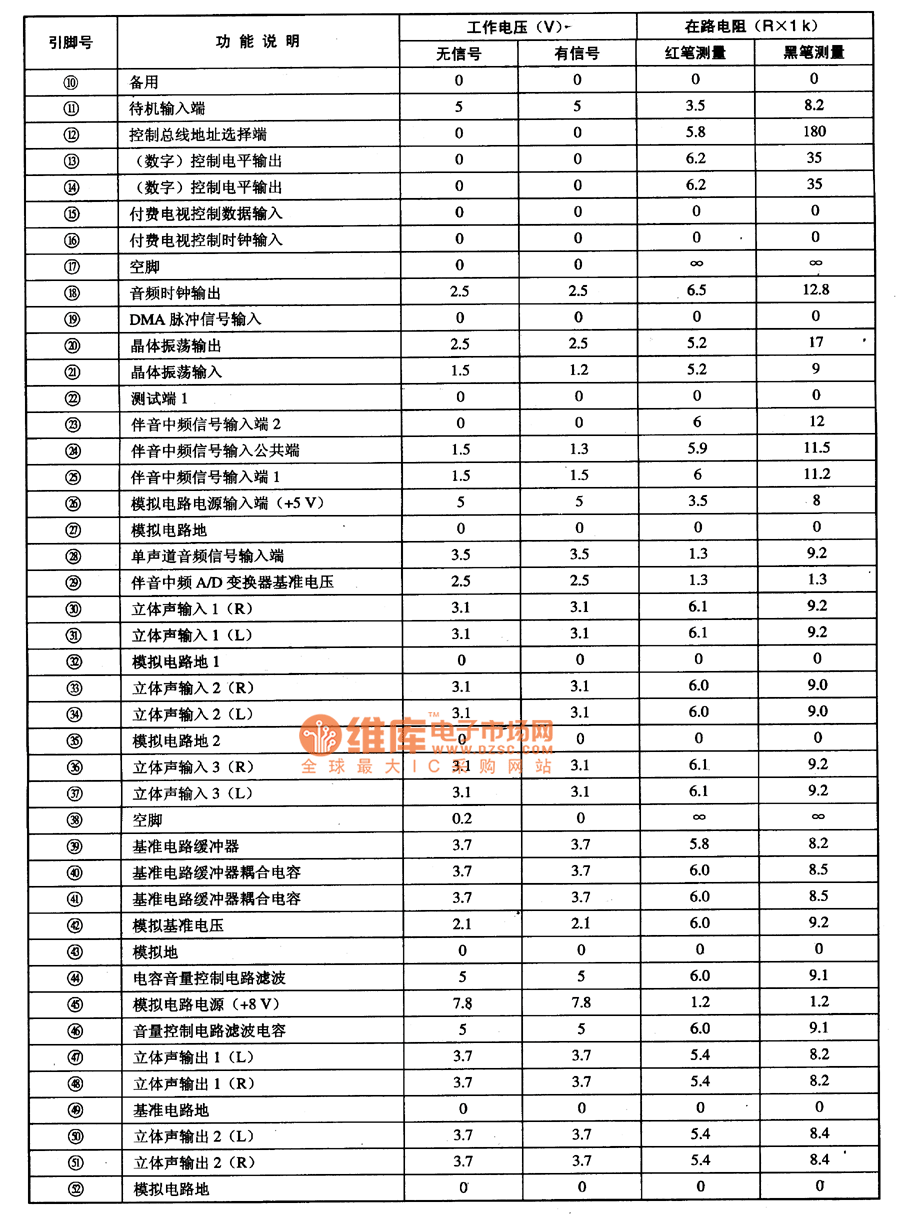

1.function featuresMSP3410B contains the A/D converting circuit, D/A converting circuit, I2C general and I2C general connector circuit, S general connector circuit, sound demodulation circuit, NICAM decoding circuit, audio output shifting circuit and other additional function circuit. The internal circuit of MSP3410B is shown in the figure. The internal circuit of MSP3410B2.pin functions and dataMSP3410B is in 68-pin square package, whose pin functions and data are listed in the table.The pin functions and data of MSP3410B
