MR8181--the integrated circuit of the infrared remote signal receiver

Published:2011/6/10 21:57:00 Author:qqtang | Keyword: integrated circuit, infrared remote signal receiver | From:SeekIC

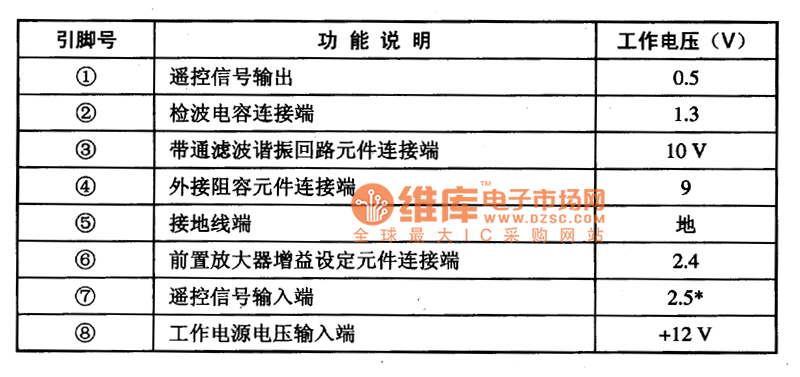

MR8181 is an integrated circuit of the infrared remote signal receiver, which is often used with the remote emitter integrated circuit MT8803, fan single chip microcomputer integrated circuit MH8822, and they form the fan remote control system, such as the Great Wall fan and the like.1.pin functions and dataMR8181 is in 8-pin single line package, whose pin functions and data are listed in table 2. The pin functions and data of MR8181 2.the typical application circuitThe typical application circuit of the remote signal receiver, which consists of MR8181, is shown in the figure of MH8822.
