MOSFET Amplification Circuit of Grid External Baising Circuit

Published:2011/5/7 4:03:00 Author:Joyce | Keyword: MOSFET, Amplification, Grid, External, Baising Circuit | From:SeekIC

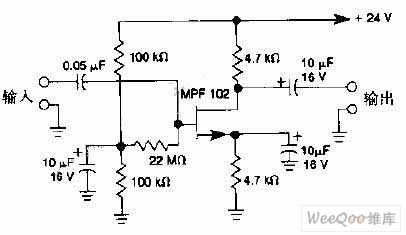

In this amplifier circuit. the grid of MPF162 MOSFET uses an external voltage bias, so it can gain good control of the work electricity and achieve good bias conditions.
