MONOSTABLE_USING_VIDEO_AMPLIFIER_AND_COMPARATOR

Published:2009/7/1 2:47:00 Author:May | From:SeekIC

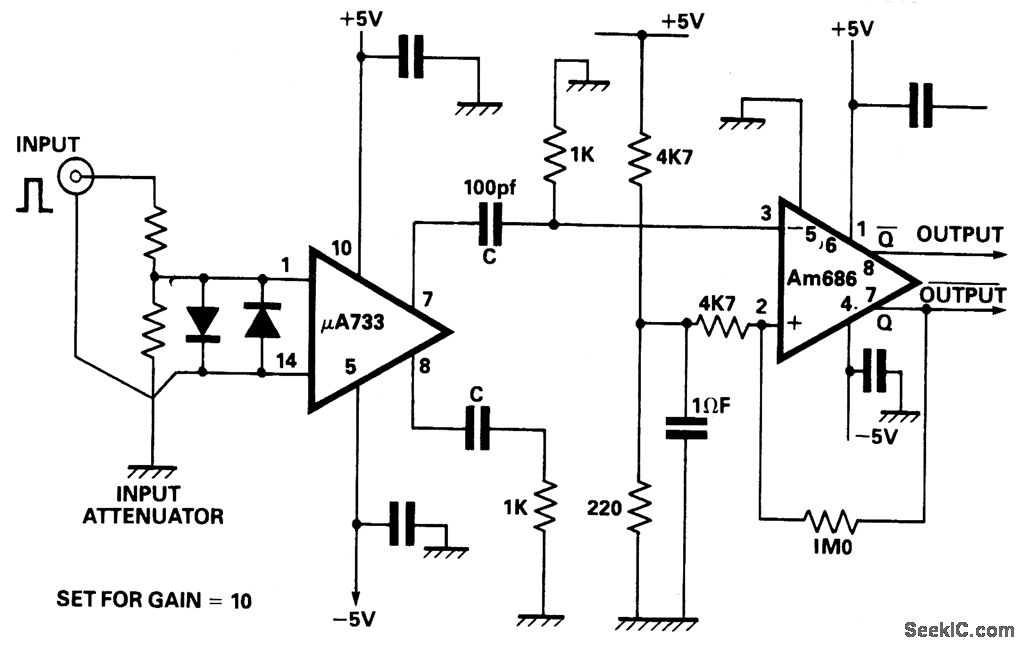

The output of a video amplifier is differentiated before being fed to a Schottky comparator. The propagation delay is reduced to typically 10ns. The output pulse width is set by the value of C, 100pf giving a pulse of about 90ns duration.
