MONOSTABLE_MULTIVIBRATOR_I

Published:2009/6/23 22:26:00 Author:Jessie | From:SeekIC

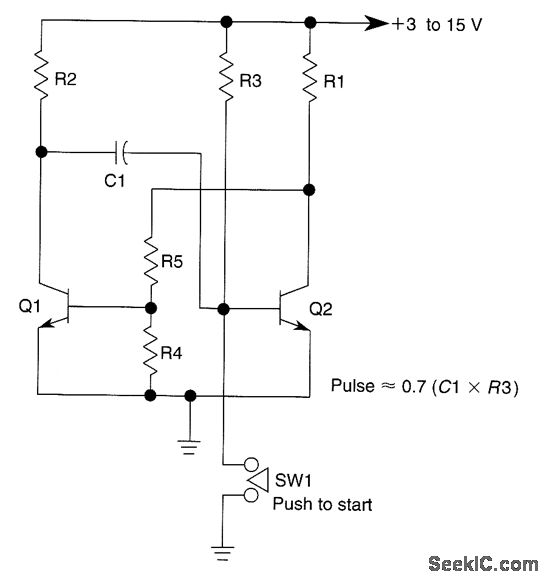

This circuit is activated when SW1 is pushed to ground the base of transistor Q2. The pulse rate is approximately equal to 0.7(R3×C1).
