MODIFIED_EMITTER_SQUARED_EOLLOWER

Published:2009/7/10 2:07:00 Author:May | From:SeekIC

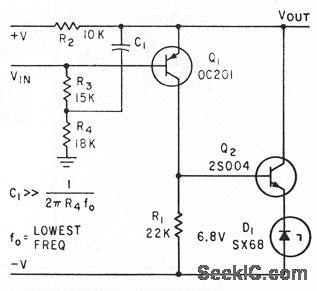

Complementary transistor arrangement of feedback amplifier is modiled to reduce shunting effect of R3 by applying positive feedback voltage that artificially increases vctlue of R3.-T. K. Hemingway and J. Willis, Transistor Pairs Improve Emitter-Follower Performance, Electronics, 35:21, p 48-49.
