MODIFIED_ANALOG_MULTIPLIER

Published:2009/7/17 1:25:00 Author:Jessie | From:SeekIC

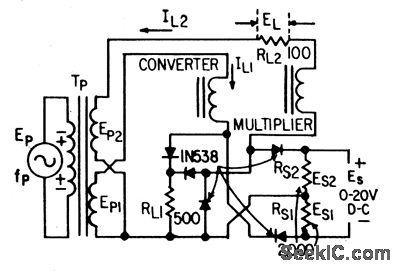

Input signal voltages are obtained from center-tapped 2,000-ohm input resistor so that each signal may change its polarity Circuit then Provides unidirectinal output voltage EL which：is equal to square of ES.J， Markus,” Handbook of Electronic Control Circuits，”McGraw-Hill. N.Y,1959,p 103.
