MN67740 video decoding integrated circuit

Published:2011/6/8 2:21:00 Author:Christina | Keyword: video decoding, integrated circuit | From:SeekIC

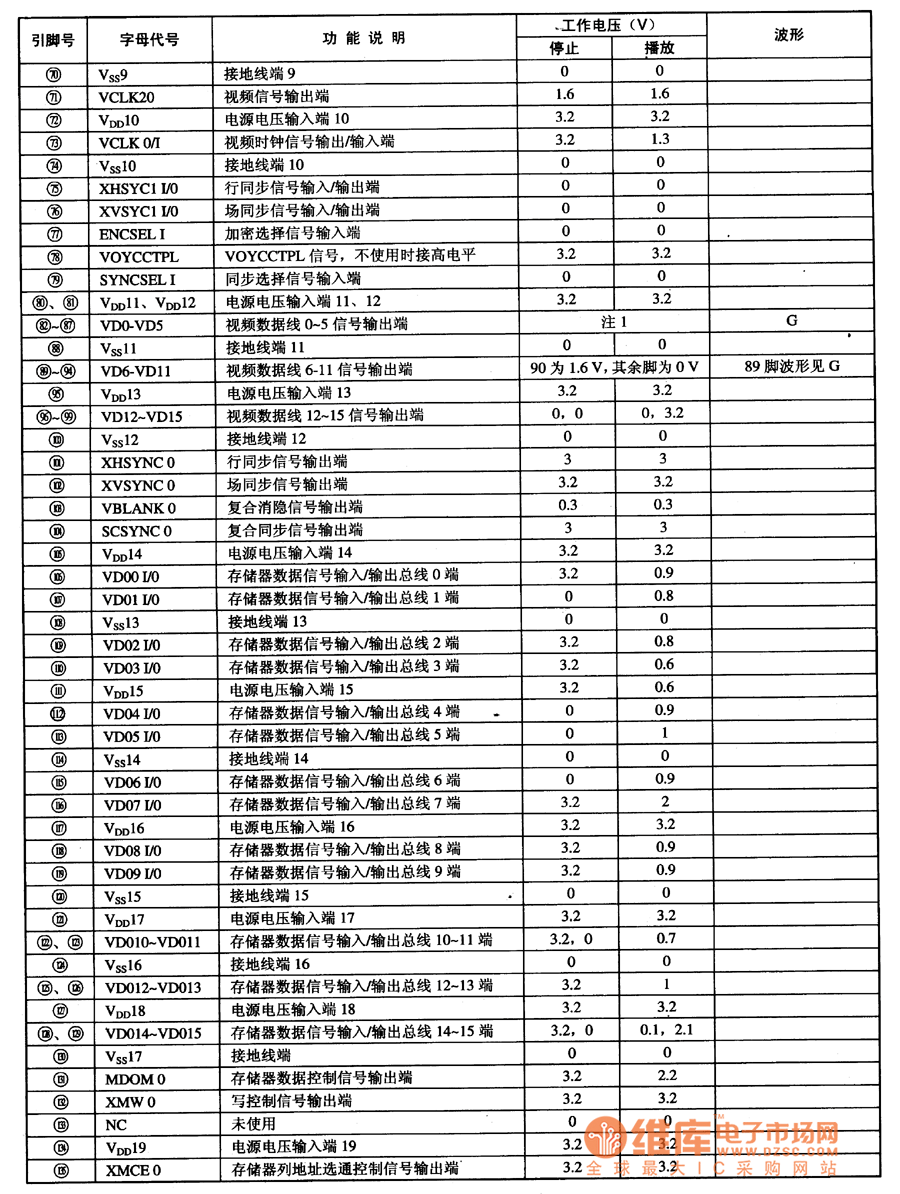

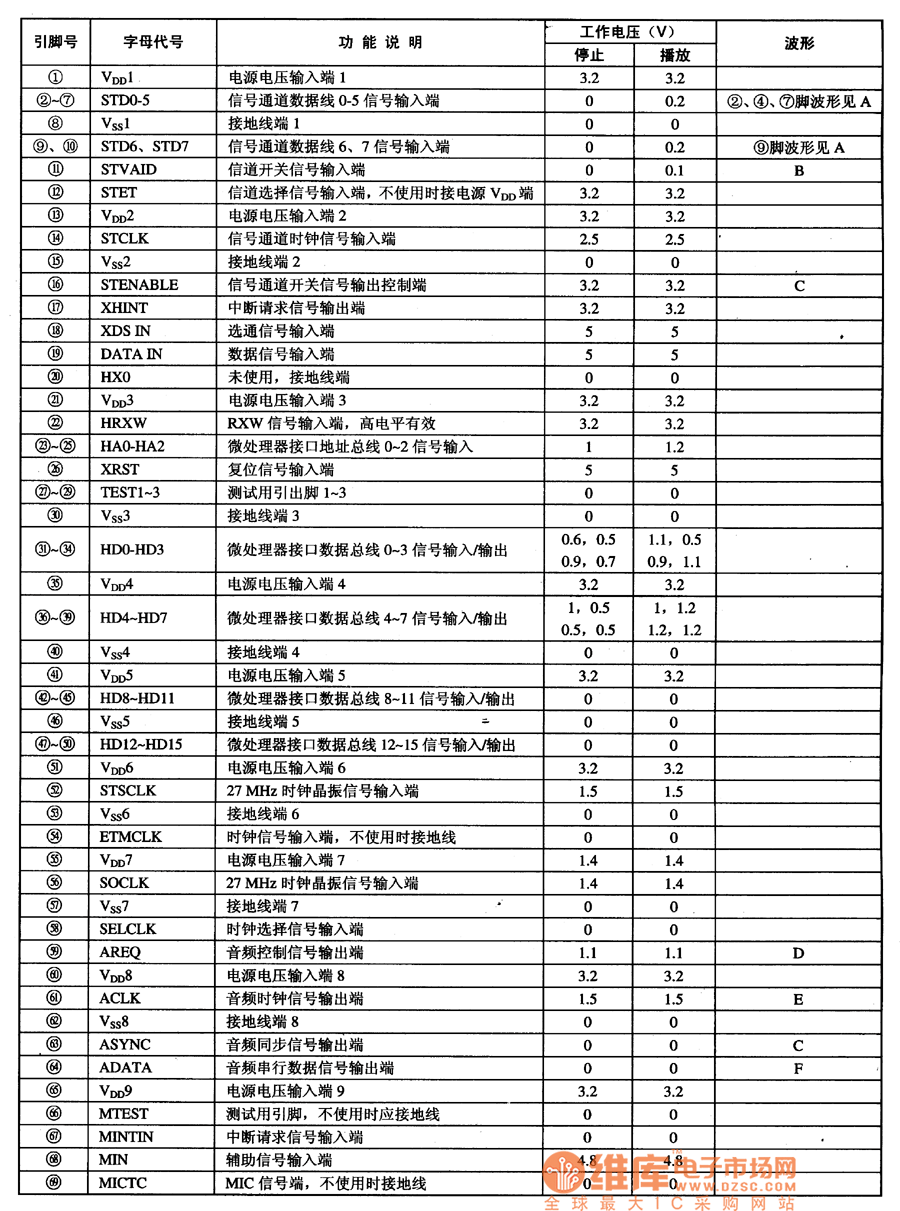

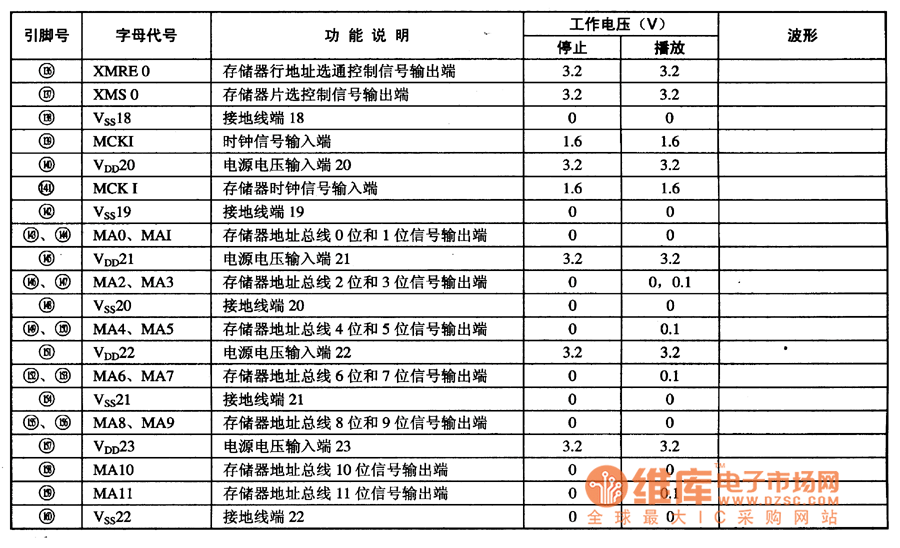

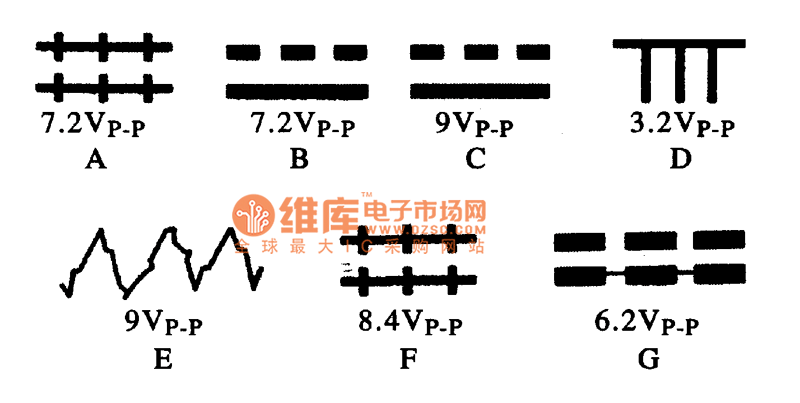

The MN67740 is designed as one kind of video decoding integrated circuit that is produced by the Panasonic corporation, and it can be used in the DVD players such as the Panasonic, the WanLiDa, the TCL and the Konka. 1.Features The MN67740 integrated circuit is composed of the audio / video data packets, the video decoding circuit, the video interface circuit, the sub-image decoding circuit, the main interface circuit, the memory interface circuit.etc. The main functions of the MN67740 are changing the compressed data into the audio and video data signals, and it decodes the video data and sub-image, then transports the video signal to the encoder in 8-bit or 16 bit format. 2.Pin functions and data The MN67740 integrated circuit is in the 160-pin quartet Package, the pin functions and data is as shown in the table. The critical pin waveform is as shown in the figure. The pin functions and data of the MN67740 integrated circuit The critical pin waveform of the MN67740
