MN1874876TSH--the single door microcomputer integrated circuit

Published:2011/6/10 22:22:00 Author:qqtang | Keyword: single door microcomputer, integrated circuit | From:SeekIC

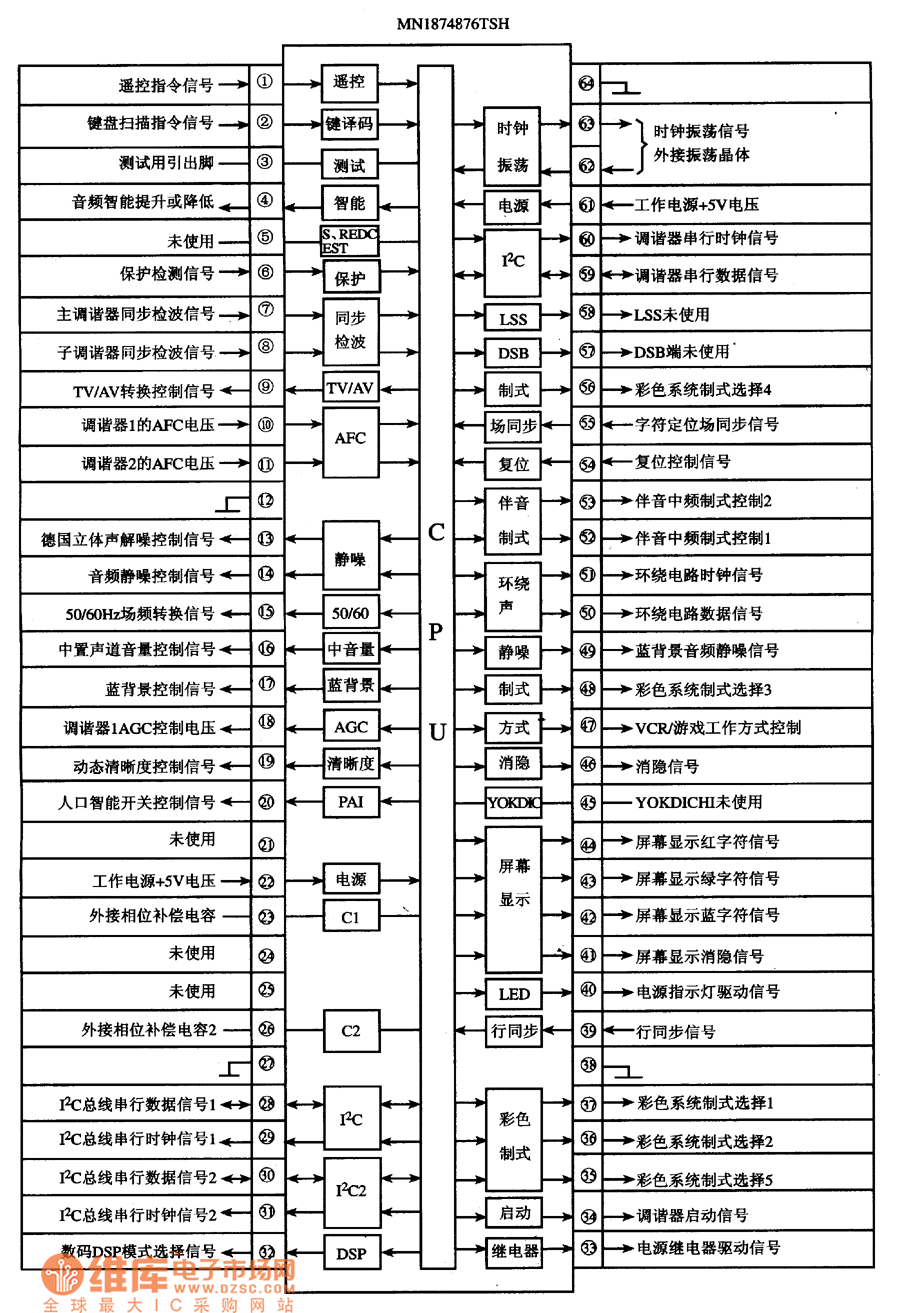

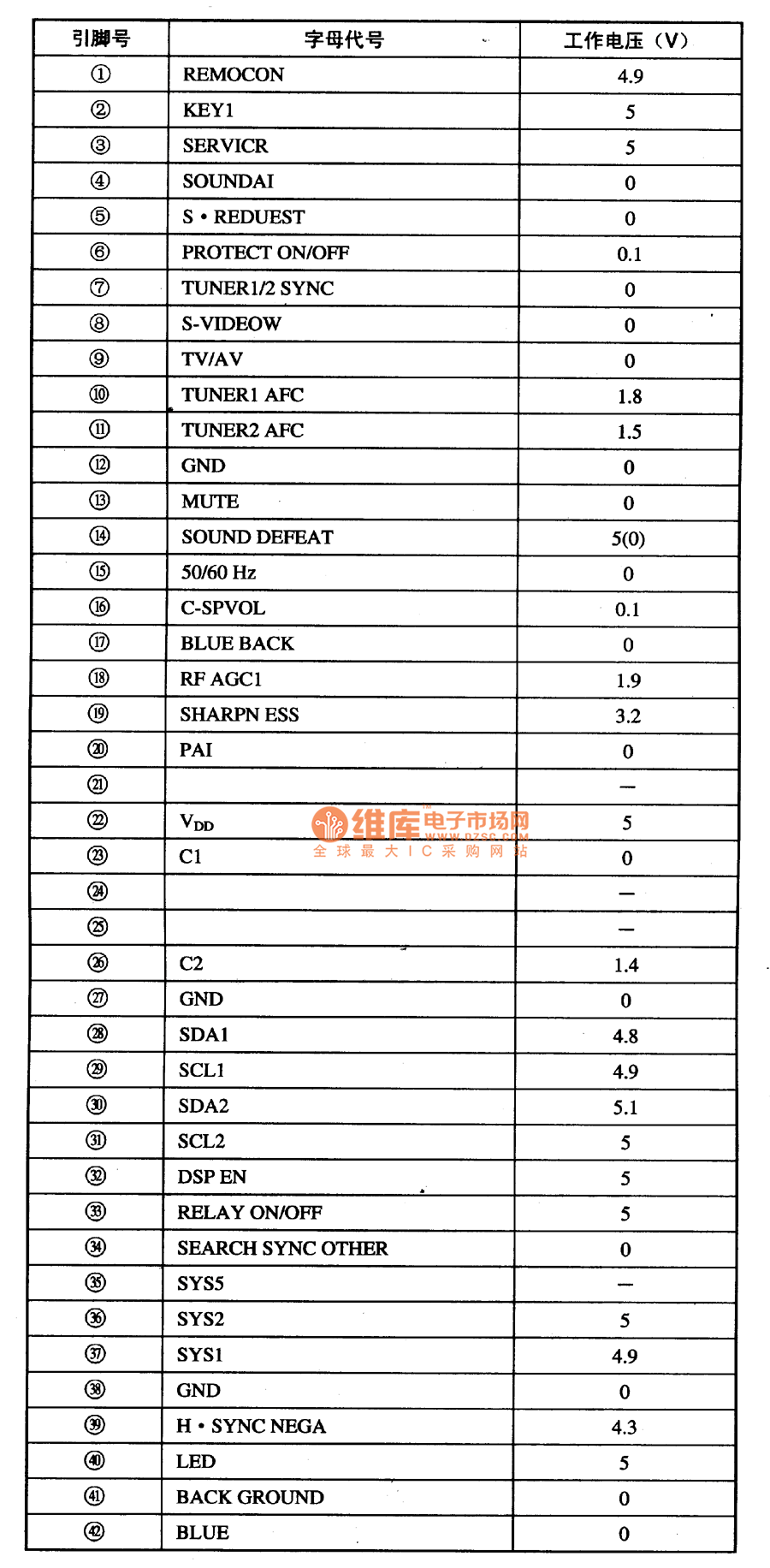

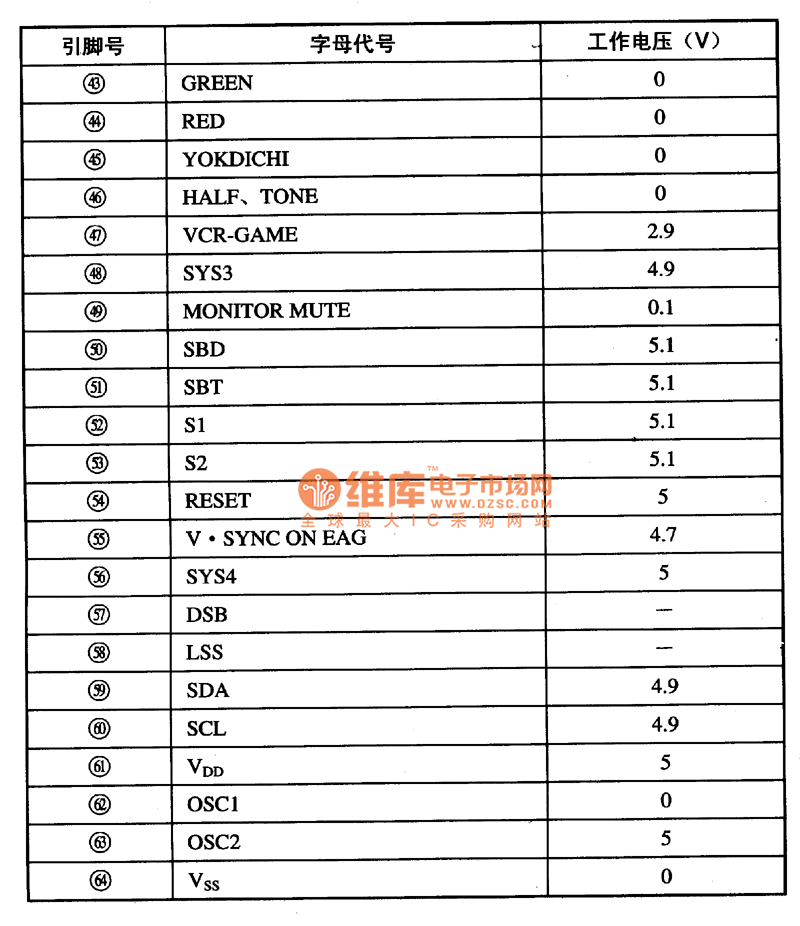

1.function featuresMN1874876TSH consists of the clock oscillating circuit, CPU, reset circuit, key decoding circuit, screen display circuit, I2C general circuit and other affiliated function circuits.2.pin functions and dataMN1874876TSH is in 64-pin dual in-line package, whose internal circuit, pin functions and signal flow are shown in the figure, and the pin letter codes and data are listed in the table. The internal circuit, pin functions and signal flow of MN1874876TSH
