MN1872432TWJ--the single chip microcomputer integrated circuit

Published:2011/6/11 5:27:00 Author:qqtang | Keyword: single chip microcomputer, integrated circuit | From:SeekIC

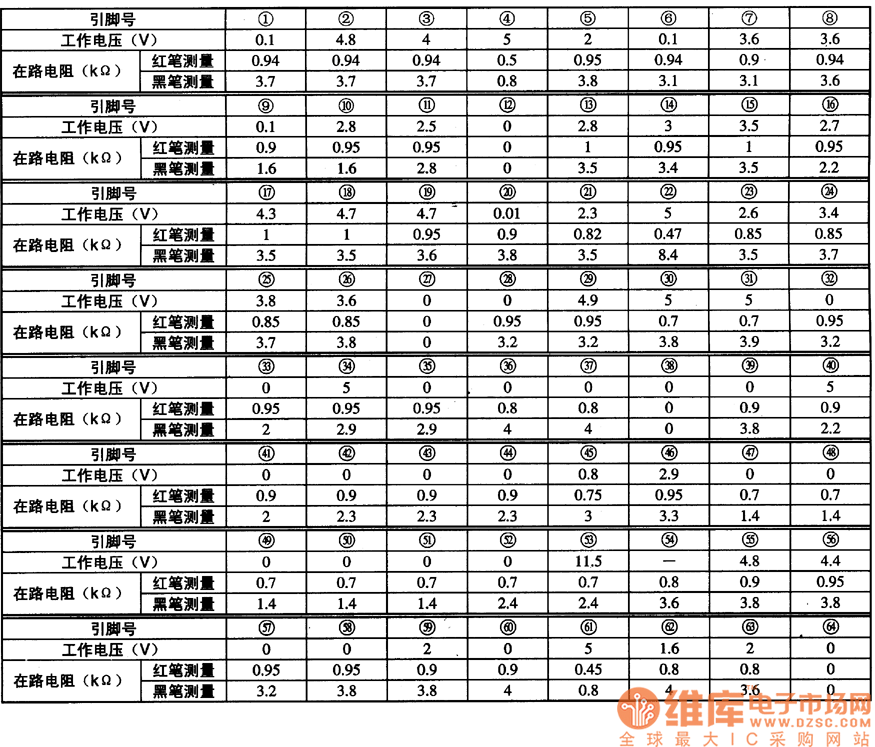

MN1872432TWJ is the single chip microcomputer integrated circuit produced by Panasonic, which is widely used in the large screen color TV sets of Panasonic cores.1.function featuresMN1872432TWJ consists of the CPU, clock oscillating circuit, reset control circuit, key order decoding circuit, displayed letter generating and processing circuit, and other control and affiliated function circuits, etc.2.pin functions and dataMN1872432TWJ is in 64-pin dual line package, whose pins are listed in the table.
