MN1872419TKO--the single chip microcomputer integrated circuit

Published:2011/6/11 5:41:00 Author:qqtang | Keyword: single chip microcomputer, integrated circuit | From:SeekIC

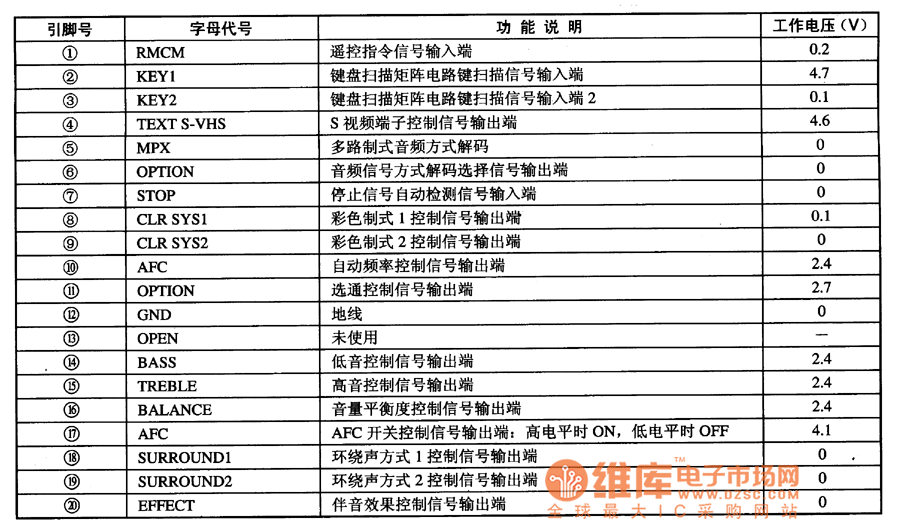

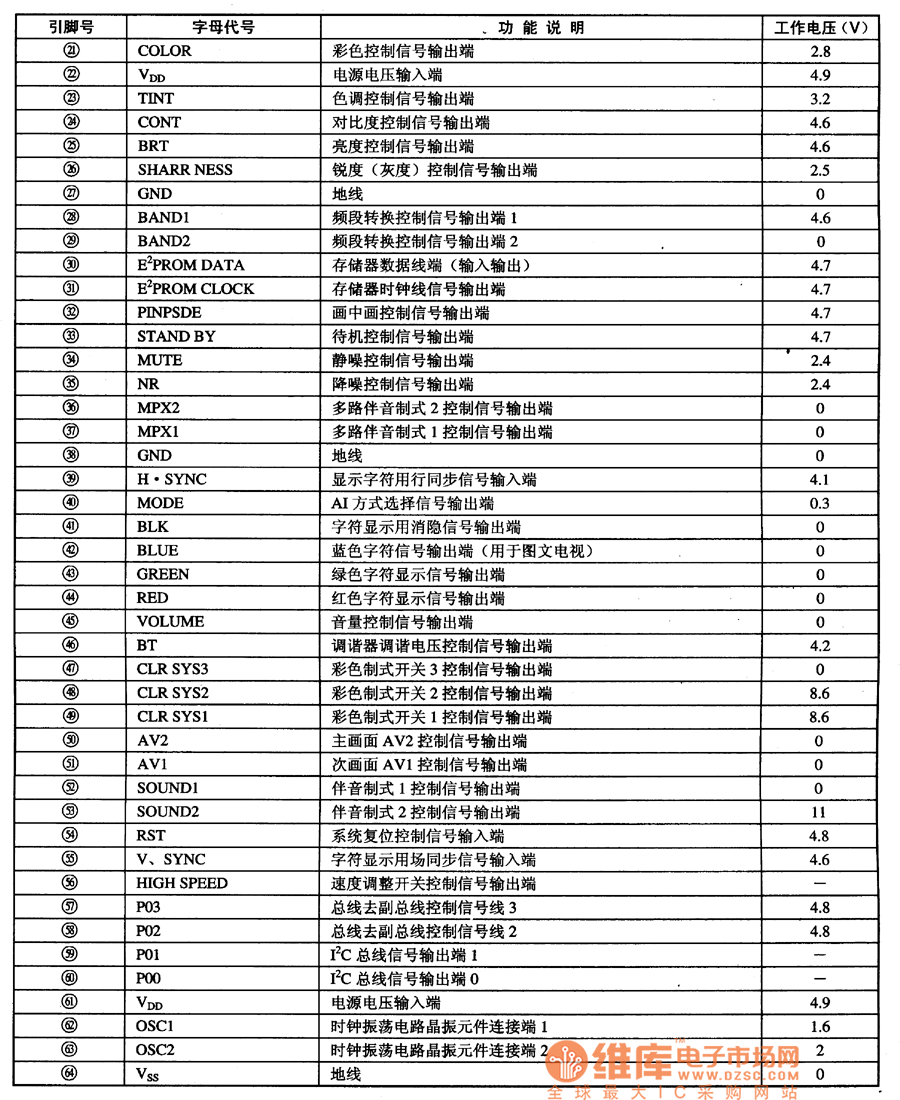

MN1872419TKO is the single chip microcomputer integrated circuit, which is widely used in the large screen color TV sets of Panasonic cores.1.function featuresIt consists of the signal process circuit, key order decoder, PIP control circuit, system control circuit,I2C general control circuit, standby/ starting up control circuit, display letter generating and processing circuit, and other control and affiliated function circuit, etc.2.pin functions and dataMN1872419TKO is in 64-pin dual line package.
