MN1871675T7W--the single chip microcomputer integrated circuit

Published:2011/6/11 8:55:00 Author:qqtang | Keyword: single chip microcomputer, integrated circuit | From:SeekIC

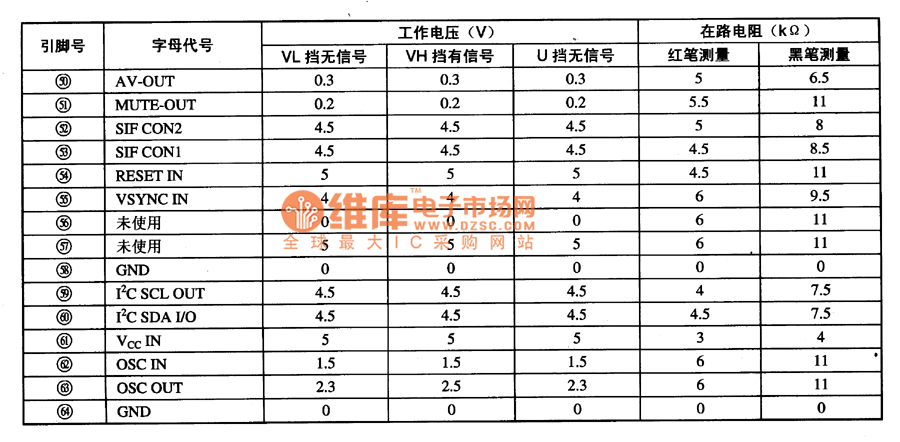

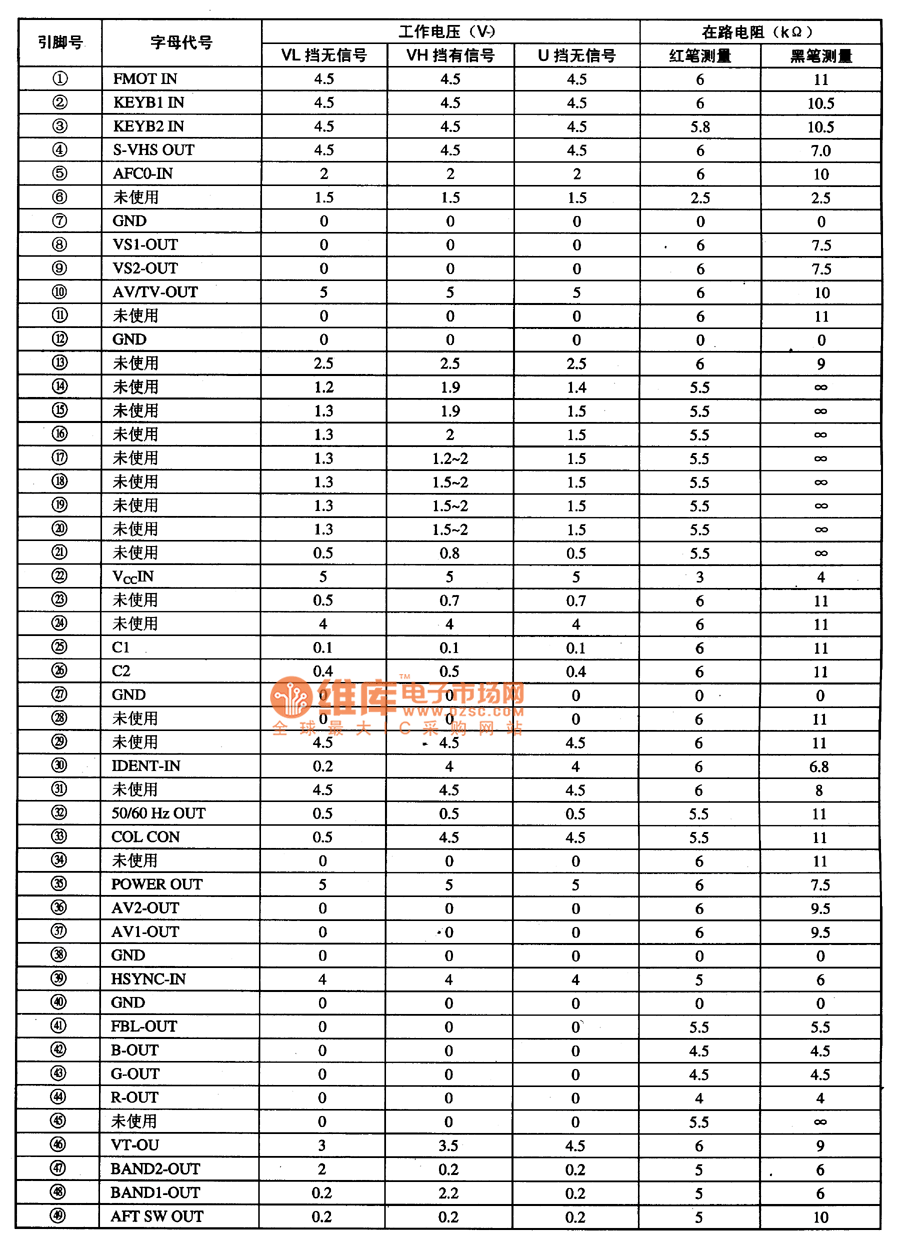

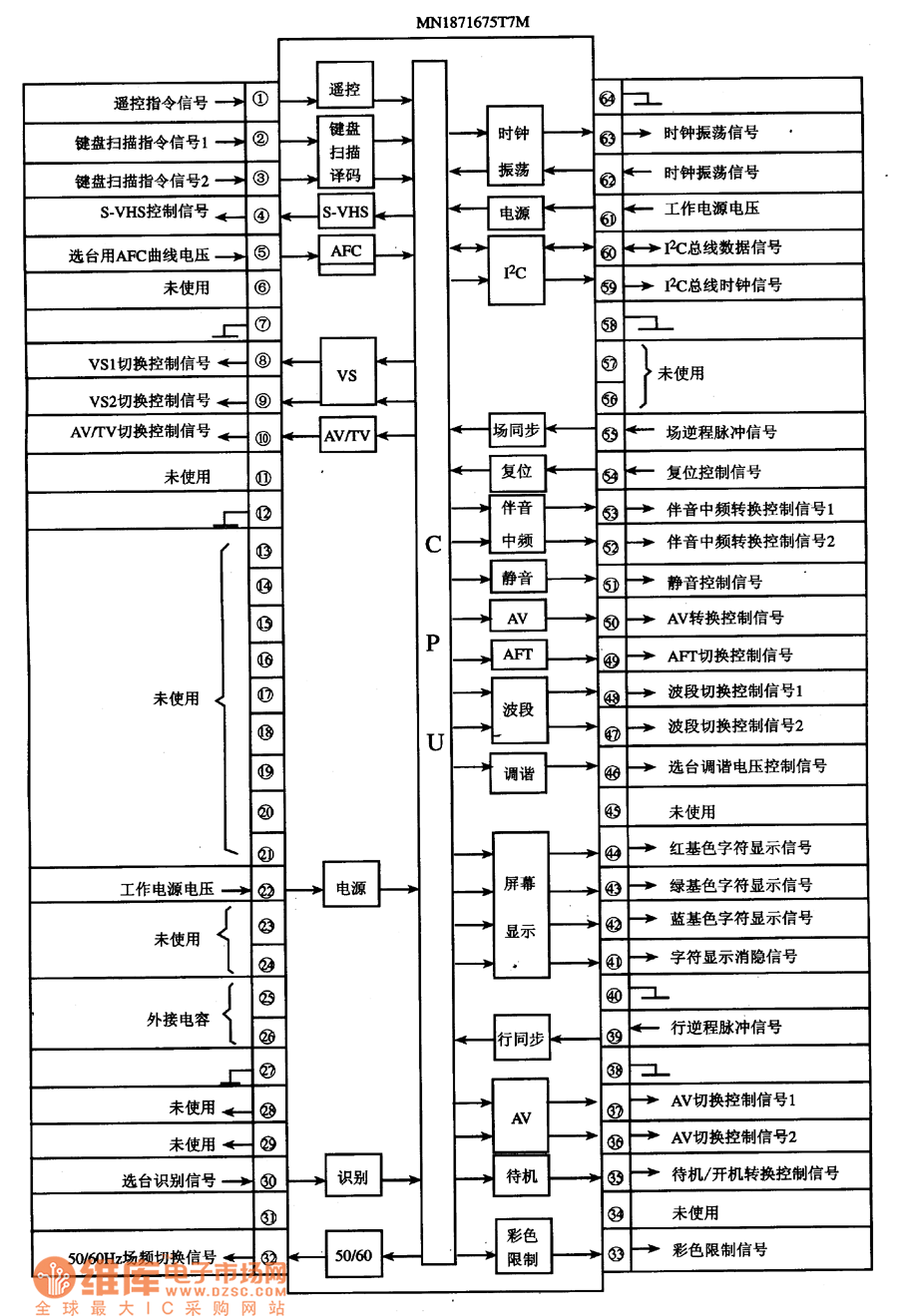

1.function introductionMN1871675T7M consists of the clock oscillating circuit, reset circuit, key scanning order decoding circuit, I2C general circuit, remote order signal process circuit, AV/TV converting control circuit, system converting control circuit, letter display circuit, standby/starting up alternating circuit and other affiliated function circuits, etc.2. Pin function and dataMN1871675T7W is in 64-pin dual in-line package, whose pin functions, internal circuit and signal flow are shown in the figure.
